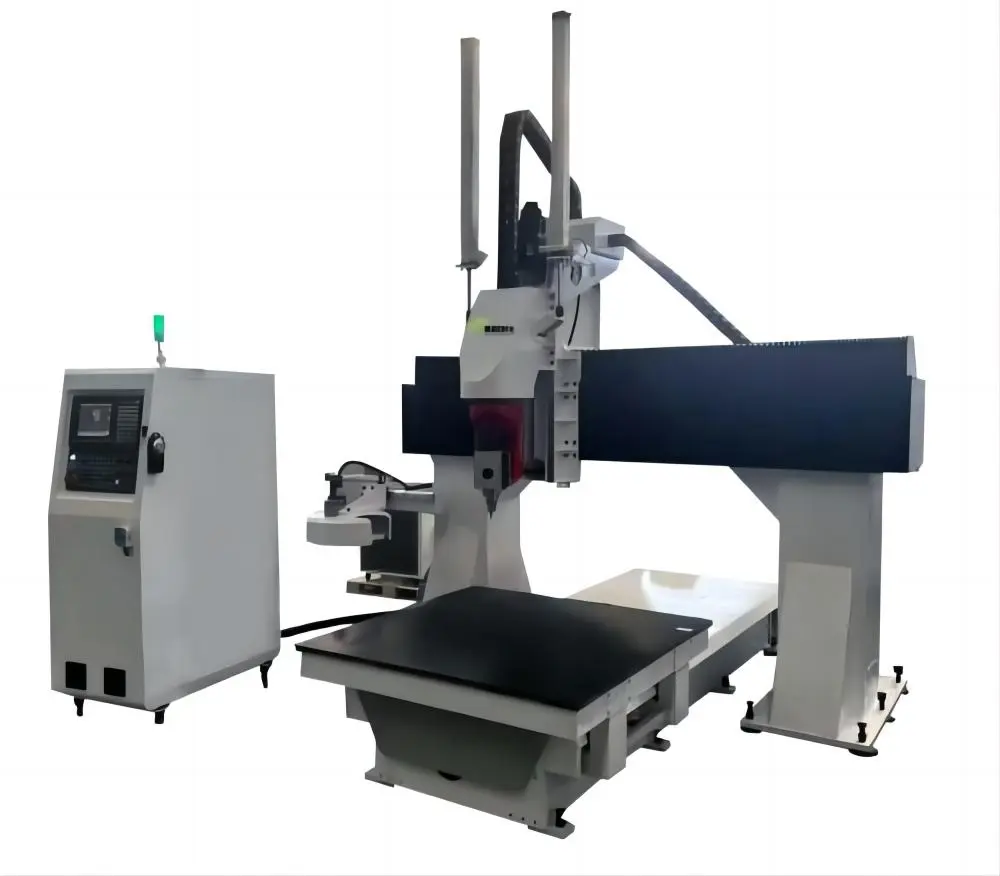

Large Moving Table 5-Axis CNC Machine center DMS 5 Axis CNC Router RSKM25-AB
New technology large table moving 5 axis cnc machine center similar as DMS 5-axis CNC Router but price is more competitive and delivery time is faster.
It process soft material like EVA,Foam,polystyrene and medium hard material like wood and hard material as metal aluminum,steel etc.
RSKM25-AB large table moving 5 axis cnc machine center is same as axis of DMS 5 but more advantages than DMS 5 axis
What is characteristic of moving table 5 axis cnc machine RSKM25-AB:
1. Germany DAMES Professional 5 axis head L500 series with high precision and fast speed and heavy load
2. TBI ball screw / high accurate rack for transmission in X/Y/Z axis
3. Large size table moving that can process diffrerent dimension mould and sculptures maximum 2000mmx2000mm
4. Italy Hiteco brand fast speed 5 axis spindle motor 10kw with 0-24000rpm water cooled type and air cooling both no problem

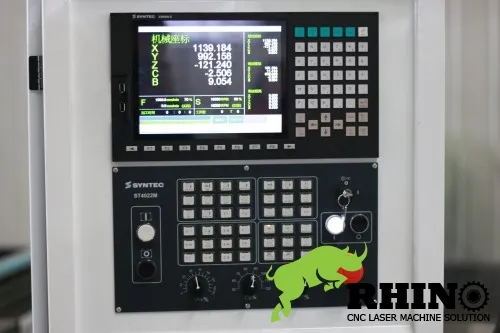

5. TAIWAN Syntec intelligent 5 axis PLC control system with separate control panel
6. TAIWAN Syntec EtherCAT Bus servo motor drivers with simple connection, easy operation and fast reaction speed features
7. This machine with spindle 0-360 degree are mainly used for milling, cutting,engraving,slotting,trimming,drilling different models and sculptures
8. The most important of o ur table moving 5 axis cnc machine price is so much reasonable than DMS 5 axis cnc router machine, but all components and electronic parts are more famous and long time to use.
9. No matter one table or two tables moving both we can make with high quality
10. We offer you PowerMill and its post processer whole one set together with machine and we offer you training online until you learn it well.
Application of 5 Axis CNC Router RSKM25-AB:
1. Automotive foam mold used in decoration and designs industry
2. Wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry
3. 3d surface engraving and shape cutting of large-scale instruments.
4.Car mold and crafts mold and auto parts casting mold etc
5.Military industry
6.Aerospace industry like airfraft making etc
7.Boat-building industry like boat,yacht model making etc.
Applicable Materials:
Aluminum, Copper, Steel, Poly, Substitute Wood,foam, Resin, Gypsum and other non-metallic materials.
Technical details of 5 axis CNC machine RSKM25-AB:
| Machine model |
RSKM25-AB |
| Working table(lengthxwidth) |
1600mmx800mm(other table size we can make as per your requirement) |
| Detail of movement |
Table moving |
| Working method of table |

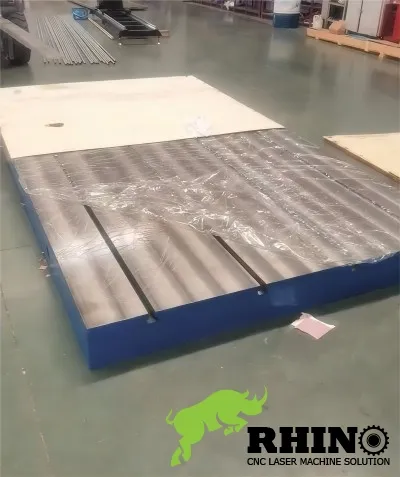

T-SLOT combination with cast iron structure/ Vacuum table |
| CNC System |
5 axis Syntec from Taiwan |
| Max cutting speed(m/min) |
40m/min |
| X/Y/Z axis guide specification |
HIWIN30 original from Taiwan and x axis with TBI ball screw 35mm diameter |
| ATC 5 axis spindle power |
10kw HITECH with 5 axis DEMAS head |
| Tool holder model |
BT40/ISO40 |
| Quantity of ATC holder |
12 pcs |
| Working way of ATC |
Linear tool changer |
| Positing accurate (mm) |
+-0.005 |
| Repeart positing accurate(mm) |
+-0.005 |
| The max rotate speed of spindle |
0-24000rpm/min |
| Softare supply |
Powermill 5 axis |
| Whole machine wegiht |
5000kg |
| Package |
three parts |
| Dust collect system |
Available |
We focus on your need any machine table size can be customized as per your detail requirements.
Rhino 5 axis CNC machine center RSKM25-AB & America DMS 5 axis CNC Router difference:
1. Rhino 5 axis cnc router structure and table heavy type total machine weight more than 4000kg

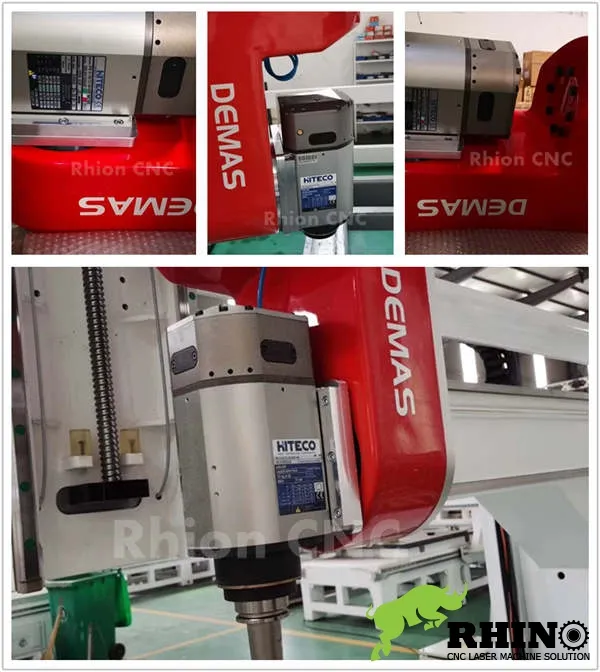

2. DAMES 5 axis head and Italy Hiteco water cooling spindle with B/c AXIS that can rotate 360 degree
3. PLC 5 axis Syntec control program with control panel, hand wheel and remote wireless wheel .
Syntec servo motor and drivers equipped with Syntec system make sure value transfer fast and no mistake.

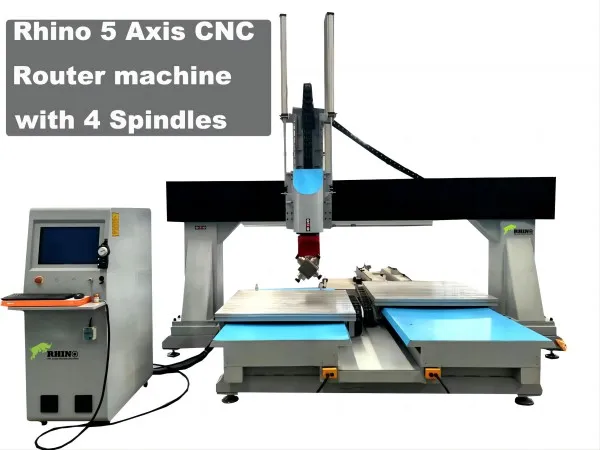

4. Our moving table 5 axis cnc router also can make double tables with 4 spindle heads making diversified working performance , also increase working efficiency.
We have better machine structure and components with advanced 5 axis technology, but our machine price is much cheaper than DMS CNC 5 axis routers
Detail accessories of 5 Axis CNC Router RSKM25-HZ :
1. 5 pieces customized long length milling tools for EPS, foam,aluminum etc
2. AC air-condition included for control box cooling
3. Machine operation video, installation drawing and operation manual in CD
4. Seprate remote control handle
5. Automatic tool changer tools and holder 12 pieces
6. Industry water chiller for spindle cooling use
7. Operation tool box one set
8. Software and post processer in CD
9. Automatic tool sensor high precision one set
Samples made by 5 Axis Rhino CNC Machine Center:
FAQ:
Q1, Could you make different table size as per my requirement?
A: Yes, we can customize any table working size and we will make drawing after that then show to you for your confirmation , after confirm no problem we start production.
Q2, What is software and post processer you will supply together with this machine ?
A: We have professional Powermill and UG software to help you make design and with their 5 axis post processer to offer to you.
The most popular 5 axis post processer is PowerMill 2017 version with its PM 5 axis post processer.
Q3,If I buy this machine what is kind of service I can get:
A:Machine warranty 2 years for free and long life time serice and we have professional engineers who are responsible for service. We offer online/telephone/email service 7x24 hours.
We have online talking group in WhatsApp and Wechat with engineers and customers
Q4,What is information you need to know before I get offer from you?
A:Firstly we need to know the working size you need and what is materials you want to mill and process so that we will offer you the best solution for this 5 axis cnc router machine
Q5,What is the delivery time for this 5 axis cnc machine ?
A:Usually we can make it ready within 30 days and need 3-5 days to inspect it perfectly with high accurate and good working performance then can delivery immediately
Q6,How to use this software and can i get training from your side?
A:Yes, we have engineer who work this two softwares so you can come our factory or we send them to your company to give you training
Q7,Could you customized this 5 axis cnc router machine as per our detail requirement?
A:Yes, you give us all your detail requests and we make agreement then start machine productime

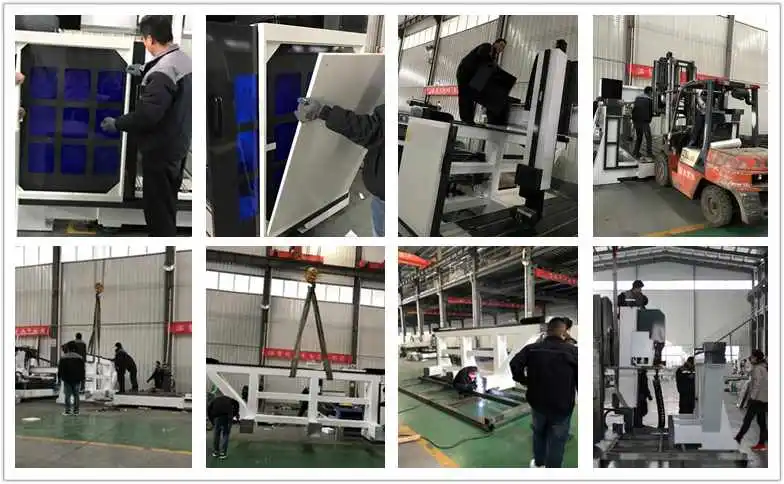

Machine package and delivery photos:
