Maximize Efficiency with RSKM15-P Linear ATC CNC Wood Router with Loading and un-loading Table
Step into the future of woodworking with the Rhino ATC CNC Machine RSKM15-P, a machine that combines speed, precision, and versatility. Designed with loading and un-loading materials tables + Linear tool changer working together to offer your perfect solution for complex woodworking tasks.
Seamless Automatic Tool Changing
Equipped with a linear tool magazine, the RSKM15-P ensures quick and seamless tool changes, significantly reducing downtime and boosting productivity. Whether you're working on kitchens, closets, or cabinets, this machine is built to handle diverse woodworking projects with ease.
Unmatched Precision and Stability
With HIWIN30 rails and helical racks, the RSKM15-P offers exceptional precision and stability. Its intelligent TAIWAN Syntec 60WE system and robust structure ensure precise cuts and carvings, making it ideal for high-quality woodworking.
Designed for the Australian Woodworking Industry
The RSKM15-P is specifically designed to meet the needs of the Australian woodworking industry. Its economic pricing, coupled with advanced features, makes it a popular choice among professionals looking for reliable and efficient woodworking solutions.
Advanced Features for Enhanced Productivity
From its fast service support to its dust-proof system and automatic height-adjustable legs, the RSKM25-D is packed with features to enhance your productivity. Its economic price point and high technology make it a valuable addition to any woodworking workshop.

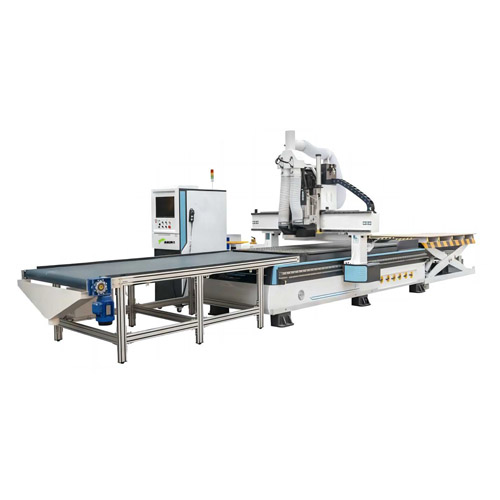

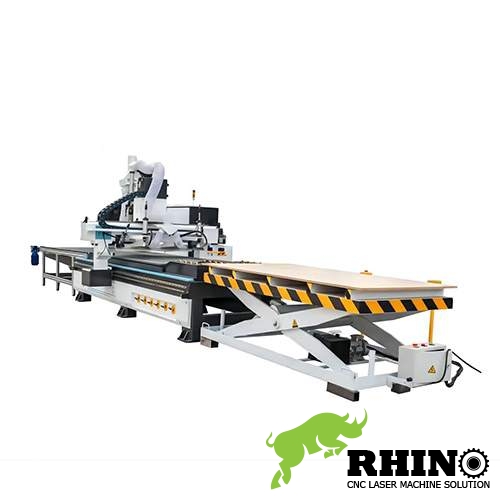

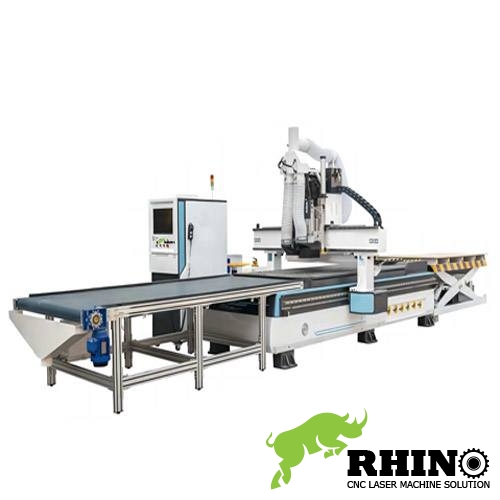

High Quality ATC CNC Wood Router 1530 RSKM15-P with Loading & un-Loading Device
Rhino ATC CNC Wood Router with loading and un-loading table RSKM15-P is the most popular model in market with linear tool magazine max
20 pcs auto tool changer function,It is with economic
China ATC 9kw air cooling spindle
and professional for wood,aluminum,PVC etc milling and drilling. This ATC CNC Wood Router now with discount price for sale.
Why Rhino ATC CNC Wood Router machine RSKM15-P is popular in market ?
1. This machine is our latest design structure cnc wood router with advanced full automatic loading and un-loading materials tables
2. Two level working table,more stronger and more higher adsorption
3. Diverse vacuum table and slot so can adsorb all kinds of wood panel , working dimension no limited
4. This machine is with fast speed for working on wood surface Mostly cutting speed can be 40m/min smoothly
5. RSKM15-P is the upgrading cnc router machine with automatic tool changer which is more convenient to use in woodworking business like kitchens,closets,cabinets etc.
6. Machine program is more intelligent with TAIWAN Syntec 60WE system, Super fast tool changing speed so improve working efficiency.
7. Disc automatic tool changer and linear tool changer two types for your option and max tools holders we can install 20 pcs
8. Linear HIWIN30 rails and helical rack are in the same surface with new structure to make sure machine will not deform after working for a long time
9. For wood carving & cutting precision could be 0.05mm perfectly because machine structure more stable and heavier than ordinary cnc router in market.
10. Automatic height adjust legs,if your ground is not flat machine can be adjusted itself well
11. Whole dust proof system with pipe 30mm diameter to help you keep a more clean working environment
12. Fast service support, if you have any doubts for this machine in operation we give you 7x24 hours fast reply at anytime
13. Economic price so it is highly popular among customers from Australia etc.
Total rhino ATC CNC Router RSKM15-P is with high technology that increased the stability of working,and lowered the failure rate,saved energy consumption by 1%,increased production by 3%,inproved the production efficiency and product quality.
The detail components of ATC CNC Wood Router RSKM15-P:

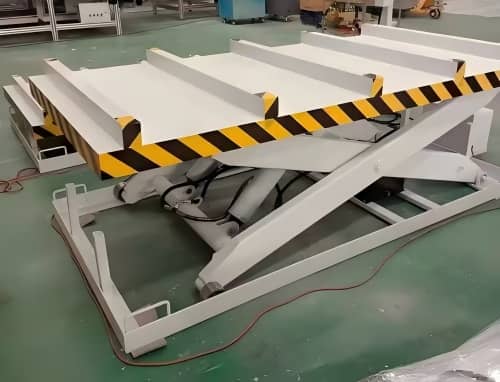

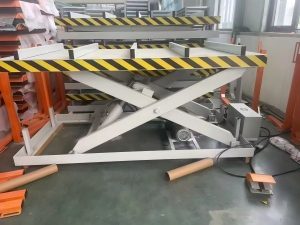

Seperate loading and un-loading material table with servo motor higher precision and fast feelding speed
11. Working table
7.5kw vacuum pump air cooling style with noise reducer to make sure low noise
10. Vacuum pump

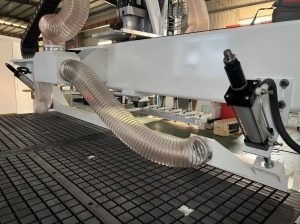

We use dust pipe diameter 30mm and dust brush two holes can working together.ATC CNC Router RSKM15-P with an independent dust suction and adsorption device, it can absorb the generated wood chips and debris during the processing, maintaining a clean and tidy workbench while providing a good working environment for the carving machine.
9. Dust collector with pipes
We use Germany quality strong cable inside 6 lines make sure many years working no problem. All cables we use are with CE certificate that is more safe to use and reduced failure rate.
8. Cables

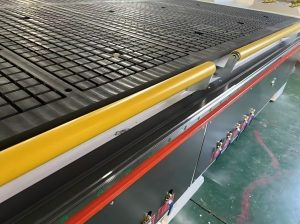

Vacuum table with toughness pvc materials with drawing 8 zones. T-SLOT combination also no problem
7. Machine working table
Better control the processing speed and improve processing efficiencySyntec 60WE system latest version with keyboard and screen whole set .This system has a good engraving intelligent processing program, which can effectively prevent mechanical collisions,
6. Control system

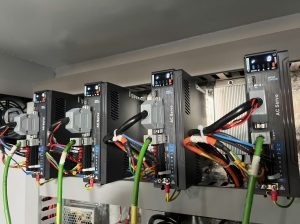

Yaksawa servo motor drivers 850w from Japan Original with shimpo Japan reducer motor instead of gear box make sure higher precision and more stronger strength.
5. Motors and drivers
Italy HSD 9KW ATC spindle with machine with 24 month service for free and 0-18000rpm & 0-24000rpm for option that can cut, engrave, drill, punch, mill multi functions
4. ATC CNC router Spindle

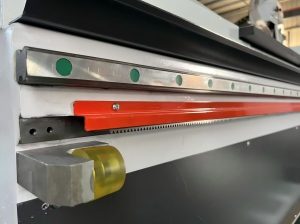

TAIWAN HIWIN25 oringla linear rails from Taiwan for XYZ axis and Germany TBI ball screws in Z axis
3. Working transmission
It is controlled by forth axis from system so can shorten the time of tool changing then improve working efficiency
2. Pneumatic type linear tool magazine push
Linear auto tool changer magazine beside of machine table/behind of machine table/ front of machine table 3 locations for option, so more convenient for your operation.
1. Tool magazine:
ATC CNC WOOD Router RSKM15-P with Loading un-loading Table Detail Technical Parameters:
| Number |
Description |
Parameter |
| 1 |
X,Y,Z Working Area |
1500mmx3000mmx300mm |
| 2 |
Table Size |
1530mm×3140mm |
| 3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300 |
| 4 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
| 5 |
Table Surface |
Vacuum and T-slot Combined (Option: T-slot table) |
| 6 |
Frame |
Welded structure |
| 7 |
X, Y Structure |
Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 |
Z Structure |
Hiwin Rail Linear Bearings and Ball Screw |
| 9 |
Automatic tool changer |
Linear type（disc type for option) |
| 10 |
Pieces of tool changer |
12 pieces |
| 11 |
Max. Working Speed |
40000mm/min |
| 12 |
Spindle Power |
ATC 9.0 kw |
| 13 |
Spindle Speed |
0-24000RPM |
| 14 |
Drive Motors |
Yaskawa servo motor 850W or Delta servo motor drivers |
| 15 |
Working Voltage |
AC 380V/50/60Hz,3PH |
| 16 |
Command Language |
G Code |
| 17 |
Operating System |
Syntec Control System 60WE |
| 18 |
Computer Interface |
Ethernet, CF Card |
| 19 |
Flash Memory |
512M(U Disk) |
| 20 |
Collet |
ER32 |
| 21 |
X,Y Resolution |
<0.03mm |
| 22 |
Software Compatibility |
Type3/UcancameV9 software |
| 23 |
Running Environment Temperature |
0 - 45 Centigrade |
| 24 |
Relative Humidity |
30% - 75% |
| 25 |
Packing Size |
3500X2250X2200mm |
| 26 |
N.W. |
1800KG |
| 27 |
G.W. |
2000KG |
| 28 |
Delivery time |
14-20 working days |
Optional Parts of ATC CNC Wood Router:
1. Italy HSD 9KW air cooling spindle/Hiteco 9.0kw ATC spindle
2. Leadshine/Panasonic/Delta or other brand servo
3. OSAI/WEIHONG etc other control system
4. PMI rails 30
5. Machine structures can be made as per your drawing
6. Machine color can be made as per your needs
Packing List:
| Item |
Quantity |
Remark |
| Tools -engraving bits |
10 pcs |
|
| Tools-cutting bits |
10 pcs |
|
| Tools-treading bits |
10 pcs |
|
| Tools-wooden bits |
1 box |
|
| MDF board |
3 pcs |
Ever size 1500mmx1000mm |
| ISO tool holder chuck |
8 pcs |
|
| Dust collector |
1 set |
|
| Vacuum pump |
1 set |
|
| Leveling the base |
6 pcs |
|
| Tool collect |
8 pcs |
|
| Limit sensor |
1 pcs |
|
| Spindle tools |
1 set |
|
| Seals for vacuum pump |
1 set |
|
Machine Detail Photos:
ATC CNC Router Detail Components:

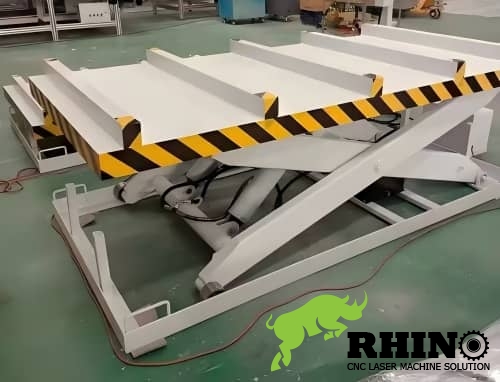

1. Strong loading material table size 1500mmx3000mm
2. LNC/Yaskawa/Delta servo motor drivers different brand for option
3. Powerful dust collection

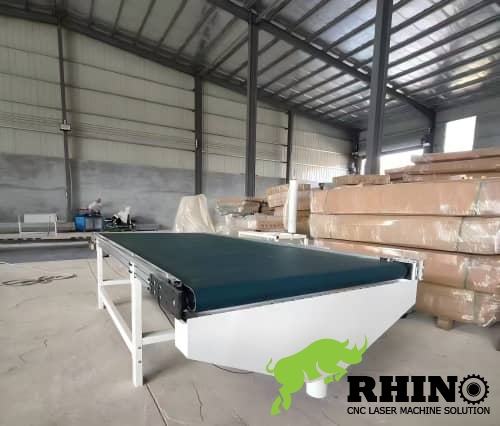

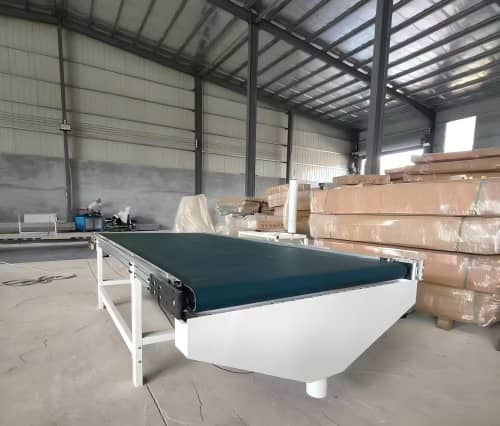

4. Side wheels for material feeding
5. Original HIWIN35/45 rails with helical gear rack pinion
6. Syntec 60WE latest version for ATC function more intelligent and ultra reaction speed.
7. ATC spindle 9kw air cooling spindle ISO30 tool holder
8. Pneumatic automatic air jack around of machine table
9.Wheels behind of table to help you move materials

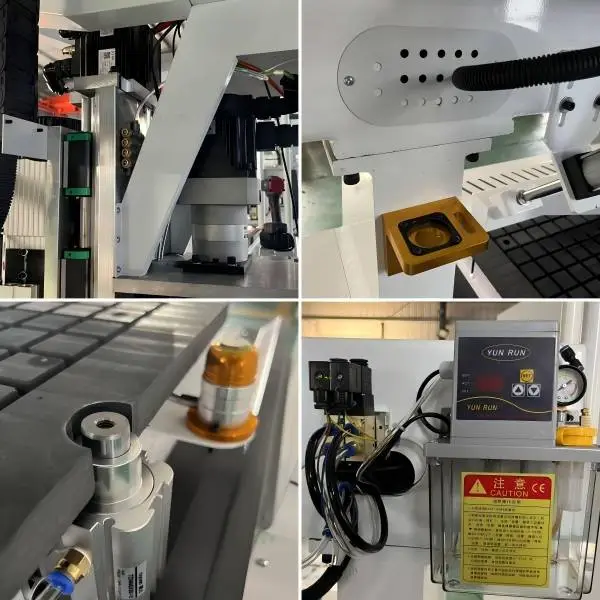

10. More detailed parts Auto oil pump/Location pod etc
We use high quality CE passed cables that run many years no broken, the big power trabsformer offer enough power for all electronic parts well. TAIWAN Delta inverter high quality
ATC CNC Router delivery to Australi with package photos
Cutting samples of ATC CNC Wood Router Machine :
Machine warranty and service (especially in Australia):
1. Whole machines 2 years warranty for free and long life time service
2. Spindle motor and other electronic parts 12 month warranty for free
3. Online training and videos are available
4. We have report for every machine sold out so we would like to receive your feedback for every machines after run it
5. We have engineers with passport so can go your company to give you training face to face
6. Egnineer group with every customers you can contact with our engineers directly online
7. 7x24 hours service is available
8.Gloable service is avaialbe ,engineers have passport that can go to your factory for training and service .
