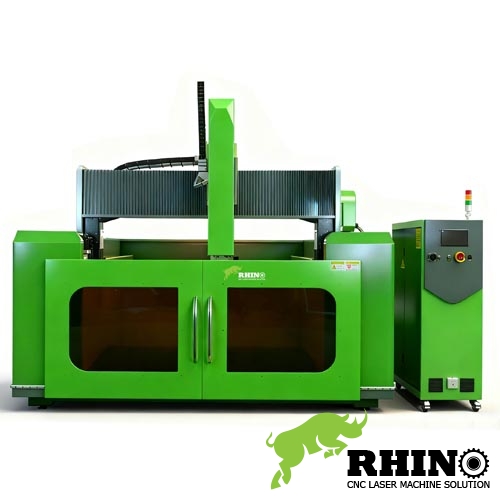

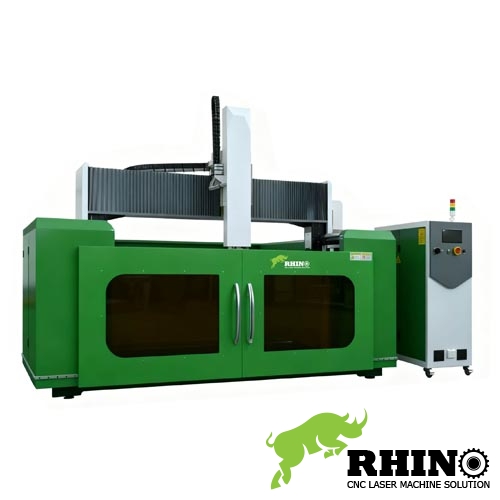

Industrial 3D Printer for Sale RP-PELLET-2030 - Large Scale for Construction Industry Model Buliding
It is Rhino latest technology big size commercial use 3d printer for large part printing also called pellet 3d printing machine (FGF type).

FGF 3D Printer Main Features:

Low Material Cost: They can directly use plastic pellets as raw material(this material is cheaper than other type), which is more cost-effective than filament-based materials.
Fast Printing Speed: They can extrude large amounts of material, typically faster than FDM printers, making them suitable for the rapid production of large parts.
Wide Range Compatible Materials: They can process a variety of thermoplastic pellet materials, including PETG, PVC, ABS, PC, PA, HDPE, TPU, and even some high-performance engineering plastics and composites.
Large Build Volume: They can typically print larger molds, meeting the printing needs of industrial-grade large-scale parts.
Printing Dimentions can be customized: Standand size have 500mmx500mmx400mm/1200mmx1000mmx1000mm/1450mmx1450mmx1000mm/2000mmx3000mmx1200mm/2500mmx3400mmx1330mm etc

Application Area :
Large-scale aviation/Automotive Structural model parts/Composite Material Models/Casting Wood Molds/Fixtures Mold/ Large Sculptures/Art Device/Architectural Component PrototypesLlarge-scale Functional Prototypes/Composite Material Research and Development/Yachts and Ships/Home life and Urban Landscape etc.


Advantages of Industrial 3D printer :
1.Fully metal enclosed large molding space printing size 2000mmx3000mmx1200mm integrated molding
2. Direclty use FGF Fused Granulate Fabrication pellet with low cost
3. Using precision wheel transmission and Taipower servo drive ,high-speed printing reaches 200mm/s
4. 3D printer frame is thickened and welded and annealed with strong deformation resistance, suitable for long-term continuous operation
5.The maximum printing speed is 25 kg/h
6. While maintaining gantry stability and accuracy (0.1 mm/1m), the printing speed is 10 m/min
7.The maximum extruder heating temperature can reach 450 degrees, exceeding most pellets melting point,meets diverse material printing requirements
8. Friendly softare use with multi language support as English / Simplified Chinese / German / Spanish / French / Italian / Japanese / Portuguese / Russian / Türkçe
9. High dynamic performance
10. Industrial-grade reliability

Technical Specifications:

Model	RP-PELLET-2030
Overall Dimension	3800×4800×4300 (mm)
Molding Dimension	2000×3000×1200 (mm)
Screw Diameter	30mm
Maximum Heating Temperature	320°C
Nozzle Size	6mm, 8mm, 10mm nozzles, replaceable
Extrusion Output	8.5kg/h
Maximum Working Speed	300mm/s
Bed	Thickened welding, closed bed structure, paint rust - proof treatment, thickened heavy - duty bed, integral aging annealing
Tabletop	Wood board + PP board
Input Voltage	220V/380V, 50/60 Hz
Rated Heating Power	4.9 kw
Slicing Software	Compatible with open - source slicing software such as Ultimaker Cura, Orca slicer
File Format	STL, OBJ, 3MF, etc.
Automatic Feeding System	Equipped with automatic feeding system
General Materials	Thermoplastic materials such as ABS/PP/PPS/PC and their fiber - reinforced composite materials

Industrial 3D printer Detail Components :

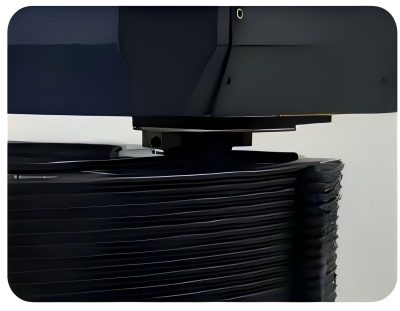

Self-developed high-flow screw extrusion design nozzle 3-8mm diameter for option

---

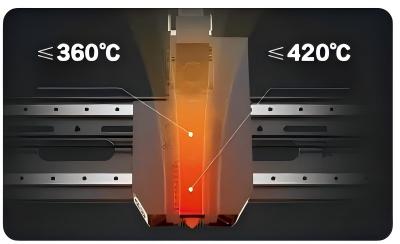

Segmented heating max temperature 450 degrees can melt most pellets

---

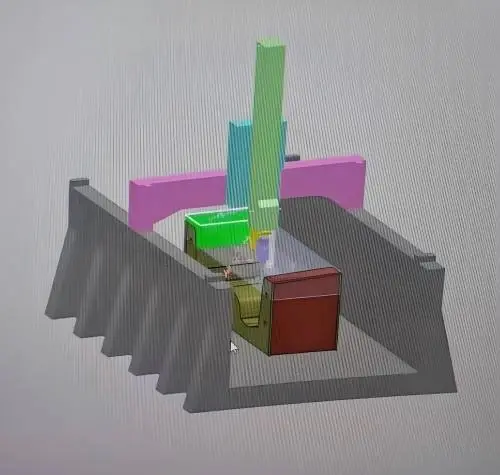

 Closed heavy machine frame with high rigidity working more stable printing higher precision

---

Piocreat_Slicer is an integrated additive manufacturing collaboration platform that automates 3D model slicing, provides online control, monitoring, and print optimization

---

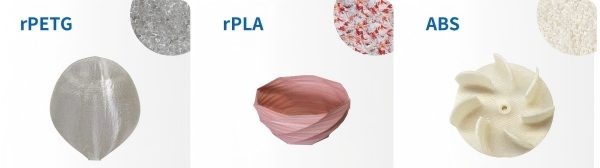

What materials can be used by Rhino Large 3D printer ?







Low warpage and high dimensional stability. Suitable for industrial manufacturing, automotive industry, electronics and electrical appliances, good design, etc.Printing temperature: 250 - 280°C







Environmentally friendly recycled material, with good biodegradability, suitable for indoor decoration, furniture and other scenarios.Printing temperature: 190 - 210°C







Recycled material, with high transparency and great environmental advantages, can be used to manufacture furniture, decorations, and various prototypes.Printing temperature: 230 - 250°C








Easy to print, excellent strength, outstanding dimensional stability and amazing surface gloss.Printing temperature: 220 - 250°C





---

Printing Samples Show :

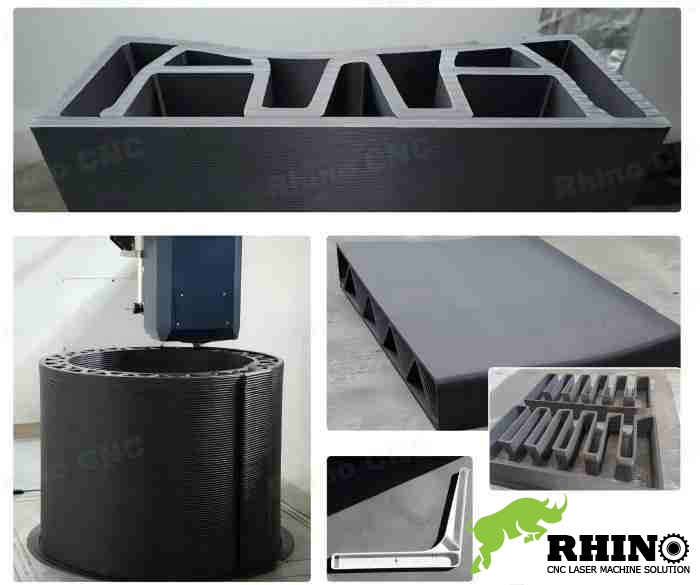

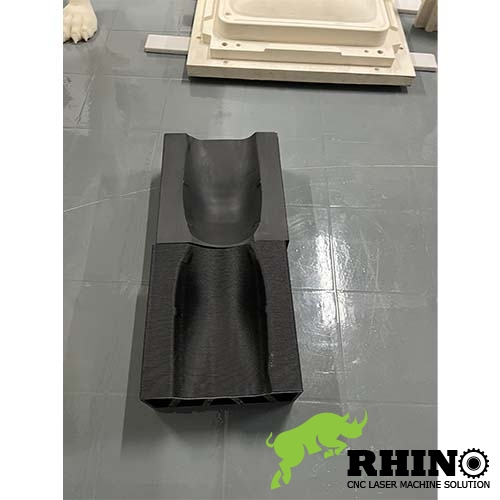

 Industrial Mold Production

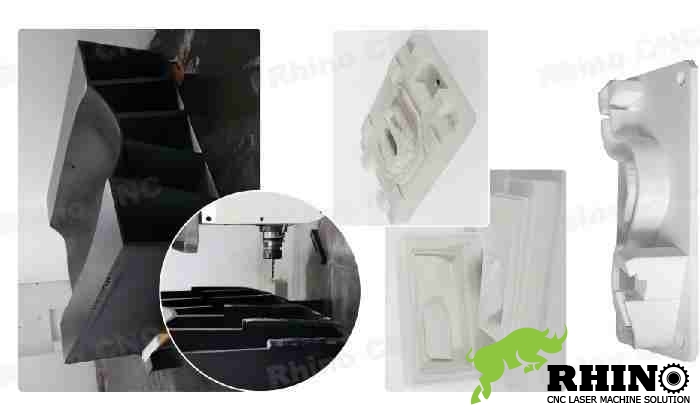

 Mold production

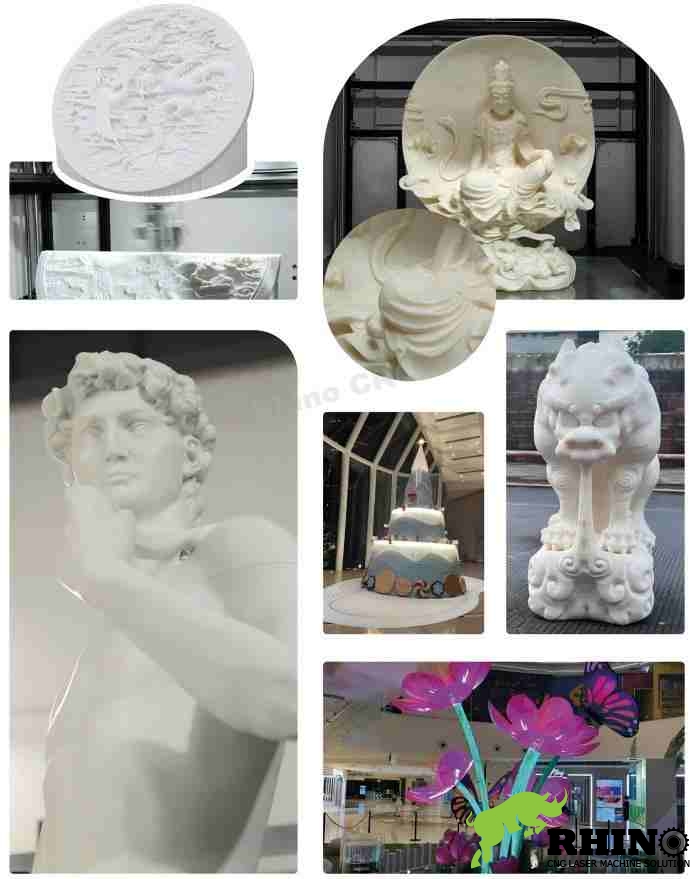

Sculpture Art
 Living Bathroom Models

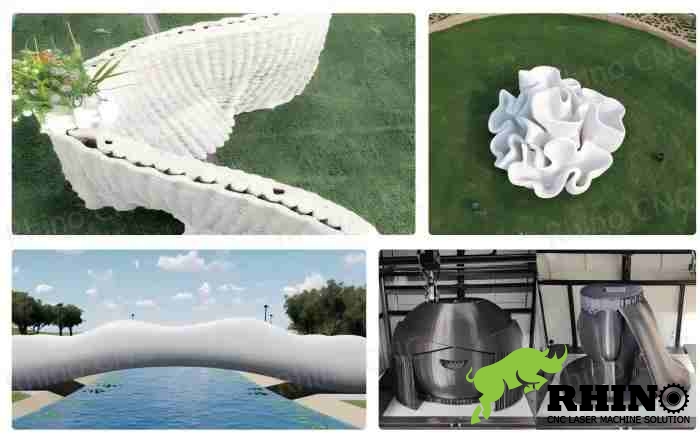

Landscape Design Building

---

Machine package and delivery
