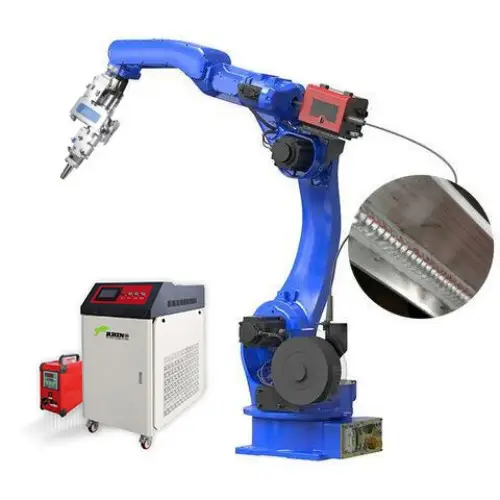

6 Axis Robot Laser Welding Machine - Robotic Arm Automatic Metal Fabrication

6 Axis Robot Laser Welding Machine - Robotic Arm Automatic Metal Fabrication

Item No.: RAW1500/RAW2000/RAW3000

Model:RAW1500W
FOB Price:
US $5000 - 15000/ Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
1000 Set/Sets per Month
Port:
QingDao/YiWu/ShangHai/Guangzhou/NingBo
Payment Terms:
T/T,Western Union,paypal

$5000.00

INQUIRY PDF Format

Description

6 Axis Robot Laser Welding Machine - Robotic Arm Automatic Metal Fabrication

This is Rhino latest 6-Axis Articulated Robot Arm Fiber Laser welding machine with Smart Welding System.
Arm’ stretch size is 1500mm-2100mm or as customers request.This kind of laser welding machines can automatic and faster welding any shape products or complex designing welding application etc with different laser power 1500w/2000w/3000w etc.

Advantages of Rhino 6 Axis Robot Laser Welding Machine:

Replace manual labor, reduce risks, and improve efficiency

fiber laser welding advantages

Main Speccifications:

Iten	Value
Model	RAW-1500/RAW-2000/RAW-3000
Output Power	1500W/2000W/3000W
Axes	6 axis
Reach	1.4m-2.1m
Place of origin	China
Applicable Material	Metal
Condition	New
Laser Type	Fiber Laser
Function	Welding/Cutting/Cleaning
Welding Mode	Continuous
Welding Speed	80 - 100 millimeters per second
Repeat Positioning Accuracy	±0.05mm
Technical Wingspan (mm)	1800mm
Parameters Installation	Floor Stand / Hang Upside Down
Rated Load	20kg
Laser Operating Mode	CW
Laser WaveLength	1080nm
Welding Head	Raytools
Cooling method	Water cooling
Installation	Ground/Wall/Inverted
Environment Requirements	Clean and dust free, 13℃-28℃, humidity: 5%-75%
Voltage	220v/380v
Warranty	2 years

Core Advantages of Customized Robot Welding Solutions:
1.Integrates high-power fiber laser technology 1500W to 3000w with precision robotic control
2.This robot laser welding machine combines efficiency, stability, and versatility to elevate your production line performance.
3.The 3000W high-power laser source ensures excellent penetration capability, supporting welding thicknesses of 0.5mm–6mm for common metals (up to 7mm for carbon steel in ideal conditions)
4.Excels in processing high-reflective and high-thermal conductivity materials like aluminum alloy and copper with advanced waveform control .
5.Accurate adaptation for all scenarios
6. Free control of technological sovereignty
7. Double breakthrough in cost efficiency
8. Zero-risk service commitment
9. Global agile delivery
10.Our 6-axis jointed-arm robots deliver exceptional flexibility and repeatability (±0.02mm), ideal for complex welding tasks in demanding environments.
11.Integrated with smart vision systems and IoT-ready controllers, this solution ensures seamless
12.integration into existing production lines.
13.It equip the Robot Arm’ stretch size is 1500mm to 2100mm or as customers request.
14.This kind of laser welding machines can automatic and faster welding any shape products or complex designing welding application etc

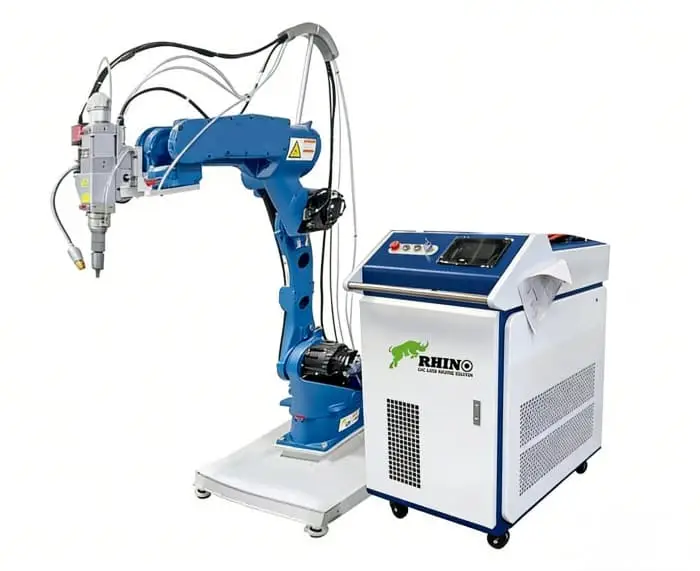

robotic arm laser welding machine

Main Parts Show

	Durable collaborative robots: Industrial-grade harmonic drive and servo motors guarantee 24/7 working without stop Dual encoders on cobot joints so that can achieve higher precision Flexible deployment with safe feature Light weight,space-saving and easy to re-deploy to multiple applications without changing your production layout Can be equipped with hand-held laser welding head or industrial laser welding head
	Advanced fiber laser welding device with fiber source and water chiller inside. Supply strong power and good quality working performance Meeting most customer needs, small size,convenient transportation.
	Feeder: Wire feeding is precise and stable, synchronized with the welding gun/laser, lightweight and easy to operate minimizing rework and material waste. Daptable to a wide range of working conditions improving welding efficiency, reducing the skill requirements for workers

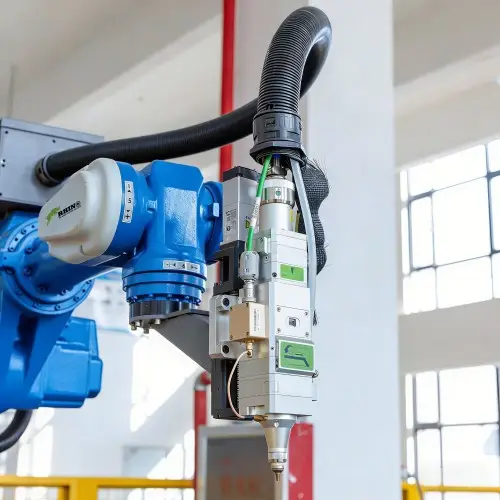

	Wobble Laser Head: Industrial-Grade Consistency <3μm process variation over 10 years (300x human stability) Zero-defect million-weld certification (NASA standard)
	Control system Multi-Languages control system, with auto layout optimization, ensure high speed operation of whole machine. Support Chinese, English, Russian, Korean, Vietnamese multi-language display, more language options are under continuous development. Support up to 12 axis control, realizes the control of external axes

Why Choose Robotic Fiber Laser Welding Instead of MIG/TIG welding machine ?

1. Weld seams and deformation

- Laser welding: narrow and deep weld seam (1-3mm), smooth and beautiful; The heat affected zone is extremely small (0.1-2mm) and hardly deformed.
- MIG/TIG welding machine: The weld seam is wide (3-8mm) and has obvious ripples; The heat affected zone is large (5-15mm), prone to deformation, and requires polishing.

2. Efficiency and speed

- Laser welding: speed is 5-10 times that of double bond welding, with a deep single pass penetration, suitable for automation.
- MIG/TIG welding: Medium efficiency, requiring multiple layers and passes, relying on manual proficiency.

3. cost

- Laser welding: expensive equipment and high maintenance but not price is very reasonable already; Saving welding materials, reducing polishing, and long-term large-scale production are more cost-effective.
- MIG/TIG welding: equipment is cheap, CO ₂/welding wire cost is low; Low overall investment.

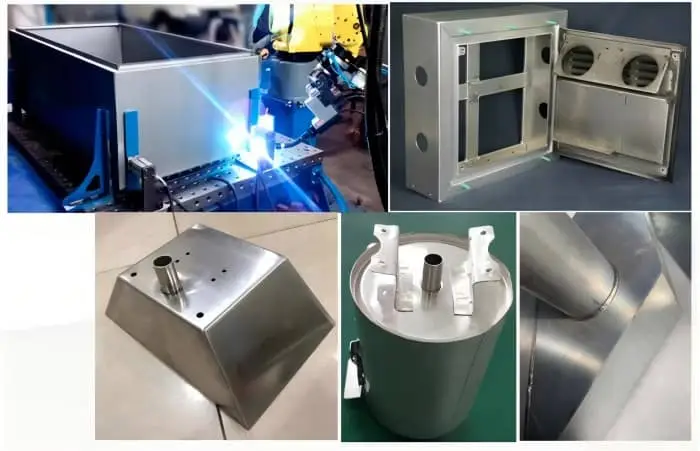

robot laser welding machine welded samples

robot laser welding machine welded samples

Welding Sample

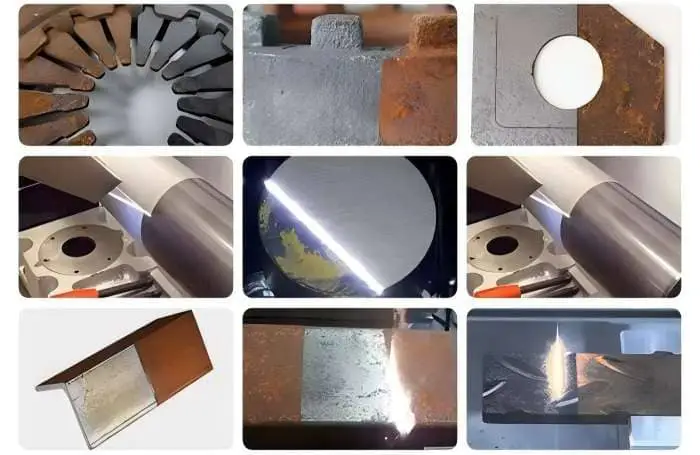

robotic arm laser cleaning samples

Cleaning Sample

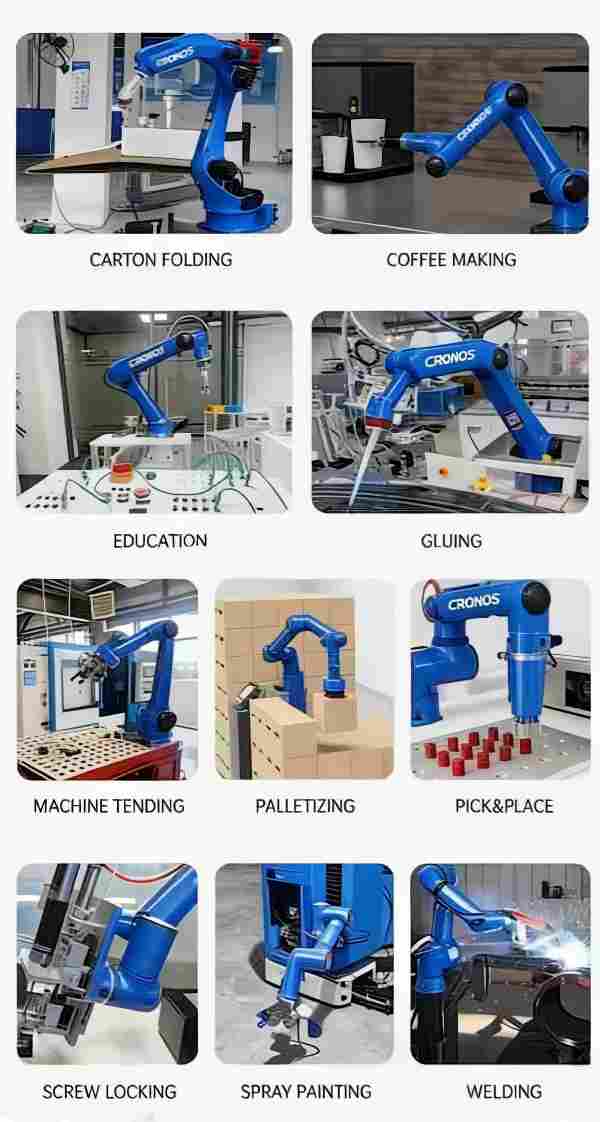

robotic laser welding machine application area

Application

FAQ :

Q1: What is the repeat positioning accuracy of this 6-axis welding robot?
A: The repeated positioning accuracy is ± 0.05~± 0.1mm, and the weld consistency is good, suitable for precision welding.

Q2: What welding processes can be adapted to?
A: Our product is laser welding

Q3: Applicable welding materials and plate thickness range?
A: Carbon steel, stainless steel, aluminum alloy, copper alloy, etc; The conventional board thickness is 1.5-20mm, and thick parts can have multiple layers and passes.

Q4: What are the specifications for load and arm span?
A: Standard load of 6kg/10kg/20kg, arm span of 1400~2200mm, can be customized and extended as needed.

Q5: Can we weld irregular parts and complex welds?
A: 6-axis full posture flexible and reachable, with weld seam tracking/visual positioning, can weld arcs, corner welds, overlaps, vertical welds, etc.

Q8: Does it support docking with production line PLC?
A: Standard communication interface is standard and can seamlessly connect with automation equipment such as assembly lines, positioners, fixtures, etc.

Q9: What parts does the entire system consist of?
A: 6-axis robot body, control cabinet, teaching pendant, laser, wire feeder, welding gun, collision sensor; Optional gun cleaning station, positioner, and fixture.

Q10: What are the requirements for installation site and power supply?
A: The ground is level and the load-bearing capacity meets the standard; Three phase 380V/50Hz, ambient temperature 0~45 ℃, no strong dust corrosion.

Q15: How long is the warranty period?
A: The whole machine is guaranteed for 1 year, the core components are guaranteed for 2 years, and lifelong technical support is provided.

Q16: What are the daily maintenance cycles and contents?
A: Check the welding gun and conductive nozzle daily; Clean the wire feeding tube and remove smoke and dust every week; Monthly lubrication of joints and calibration of parameters; Replace the lubricating grease of the gearbox every 1-2 years.

Q17: Is on-site installation training provided?
A: Nationwide on-site installation and debugging, providing operation and maintenance training, and ready for production upon delivery.
