Rhino 5-Axis CNC Router RSKM25-H is professional for sanitaryware products making with different materials: plaster, wood MDF mould, foam mould, 3D printed mould and more.
It is widely used in sanitaryware, vacuum thermoforming blister mould, automobile mould fabrication, and all kinds of landscaping sculptures.
Rhino 5 axis cnc router used in woodworking and sanitaryware products/plaster mould have standard working size 1200mmx800mm
We also can make more larger 1300mmx1300mm/1300mmx2500mm/1500mmx3000mm etc with z axis height from 800mm-2000mm
More different table working size can be customized !
1. Fast Speed
Fast milling on sanitaryware mould speed can be 40m/min with good precision on all kinds of sculpture and molds
2. Machining Height from 800mm to 2000mm for Option
Enough processing height from 800mm-2000mm easier to work large and medium-sized mold manufacturing and processing of wood,plastic molds etc.
3.Heavy Structure Machine Frame
Standard structure with stiffener and heat treatment more rigid, full welding steel panel more stable
4. High-Precision Adaptation to Mold Requirements:
Five-axis design coupled with precise Rhino system calculations achieves high positioning accuracy +-0.1mm, enabling the reproduction of complex curved surfaces in automotive molds (e.g., body panel molds and interior trim cavities), ensuring part fit and molding quality.
5. Advanced Control Program and PLC
TAIWAN Syntec intelligent 5 axis control system 610MA-E5 Safe to operate and easy to maintain
6. Strong Material Compatibility:
Reliably processes most plaster,ABS,foam,wood, and other materials commonly used in sanitaryware molds,automotive molds, meeting mold manufacturing requirements of varying strength and precision.
7. Smooth Operation and Design Integration:
Compatible with mainstream automotive CAD/CAM software, it can quickly import 3D automotive part models, reducing the cost of integrating mold design and manufacturing.
8. Outstanding Advantages in Complex Surface Machining:
Automotive molds (such as headlight cover molds and seat foam molds) often contain irregular curved surfaces. The Rhino five-axis system with 360 degrees rotating spindle head enables continuous cutting at multiple angles, avoiding the processing blind spots of traditional three-axis equipment and ensuring surface smoothness and dimensional consistency.
9. High Rigidity Ensures Processing Stability:
Automotive molds are often made of high-strength materials like hard wood. The Rhino five-axis cnc machine is constructed of heavy and precision guideways, providing high rigidity and excellent vibration resistance. This ensures stable cutting and no machining vibration.
| Model | RSKM25-H |
| Working size | Y:3000*X:4000*Z:1200mm（in 5 axis condition) More working size for option : 1300mmx2500mm/1500mmx3000mm/2000mmx3000mm etc |
| Body size | 2580*1650mm*1400mm |
| Body structure | Steel structure |
| Gantry structure | Customized strength steel welded |
| Working table | ThickSteel welded T-SLOT working table |
| X/Y/Z Working accuracy | ±0.1mm/±0.5mm |
| X/Y/Z Repositioning accuracy | ±0.1mm/±0.5mm |
| B/C rotate accuracy | - 60/20 arc sec |
| Traveling speed | 40m/min |
| Working speed | 25m/min |
| ATC Spindle | Italy HITECO 5 axis water cooling spindle 15KW with HSK-63F ER40 |
| 5 Axis Head | DAMES L500 5 axis head |
| Spindle rotary speed | 0-24000rpm/0-18000rpm |
| 5 axis part | B axis +-135 degree/C axis +-320 degree |
| Control system | Taiwan Syntec system 5 axis 610MA-E5 with remote |
| Drive and motor | Z:JAPAN YASKAWA 2.9KW brand servo motor driver with encoder+Japan Shimpo reducer motor（ONE) X/Y:2.9KW YASKAWA servo motor driver with encoder+Japan Shimpo reducer motor(THREE) |
| Transmission mode | Z:40mm TBI ball screw &TWIN 45 square rail X:2M Helical gear rack &TWIN 45 square rail Y:2M Helical gear rack &TWIN 45 square rail |
| Working voltage | AC380V/60HZ&50hz |
| Command language | G-code,*u00,*mmg,*plt |
| Dust collector | Available |
| Oiling system | Automatic oiling |
| Machine weight | Above 10000KG |
| ATC | Linear tool changer 12 pieces |
| Package Measure | 380cm*220cm*220cm |
| Name | Quantity |
| 1.TAIWAN Syntec 610MA-E5 | 1 |
| 2.X axis YASKAWA Servo 2.9kw | 1 |
| 3.Y axis YASKAWA Servo 2.9kw | 2 |
| 4.Z axis YASKAWA Servo 4.4kw | 1 |
| 5.Italy Hiteco 15kw water cooling spindle HSK63F ER40 | 1 |
| 6.X PMI high precision grind 2M rack | 2 |
| 7.Y PMI high precision grind 2M rack | 2 |
| 8.Z PMI high precision ball screw 4040 | 1 |
| 9.X axis HIWIN45 square rail | 3 |
| 10.Y axis HIWIN45 square rail | 4 |
| 11.Z axis HIWIN30 square rail | 8 |
| 12. DELTA 18kw inverter | 1 |
| 13.Germany DAMES 5 axis head L500 series | 1 |
| 14.5 axis real working size 1200x800x1000 | 1 |
| 15.Central gas storage system | 1 |
| 16.Central lubrication system | 1 |
| 17.ATC Tool holder 12 pieces | 12 |
| 18.Spring clamps and testing tools | 1 |
| 19. Separate control panel | 1 |
| 20. Ladder | 1 |
| 21 AC Air Condition | 1 |
1. Sanitaryware Products:
♦Processing of finished sanitary ware products
Special-shaped bathroom cabinet
Custom bathtub
Artistic shower head/faucet
♦Processing of bathroom accessories
Glass/stone bathroom screen
Decorative accessories
Bathroom accessories
♦Sanitary ware mold making
Bathtub/washbasin molds
Accessory molds
2. Automotive
►Automotive interior parts (dashboard trim, 3D door trim patterns), car models (complex curved surface engraving for full-scale and scaled-down models)
►Customized high-speed rail and subway interior trim, small structural parts
3.Arts, Crafts, Cultural & Miscellaneous Products
►Solid wood & stone carving for statues and decorative artworks (3D curved surface processing)
►Resin cultural products & custom items: custom badges and special-shaped ornaments
►Relief & round carving for jewelry and gemstones; 3D carving for wooden furniture like cabinet doors and armrests
4.Advertising and Signage
►Signs (3D letters and custom-shaped signs made of wood,foam,plastic etc)
►Acrylic illuminated letters (including multi-faceted cutting and curved surface polishing)
►Carve large-scale three-dimensional outdoor advertising shapes (including foam and PVC displays)
►Custom exhibition booth decorations.
5. Other molds in different industry
All kinds of molds made of metal and non metal
Solid Wood, Plaster, Plastic, Fiberglass, Carbon fiber, Wood, MDF, Double color sheet, PC, PA (nylon), POM (polycarbonate)
High-performance plastics (such as PEEK and PI), which offer high-temperature resistance and strength.
All kinds of composite materials
  Hard plastic/Hard Wood etc |
 Wood/MDF |
 |
  Wooden mould Pattern Making |
 Plaster |
 Foam and other soft materials |
Machine Frame: Heavy steel panel welded with heat treatment, reinforcing ribs inside more rigid and stable in working
Columns: The "gantry" dual-column design enhances stability and prevents deformation caused by uneven load on a single column.
Guideways: The mainstream HIWIN45 ball linear guide features high-rigidity transmission, positioning accuracy up to 0.1mm, and enhanced load capacity.
Lead Screw: The German TBI brand ball screw offers extremely low lead error (typically ≤0.1mm/m) and features a preload mechanism to eliminate backlash and ensure precise positioning.
Drive Motor: A 2.9kW Japanese Yaskawa servo motor provides high power and strength.
Spindle Motor: An Italian Hiteco 11kW air-cooled tool change spindle suitable for machining wood, plastic and various hard materials.
Germany DAMES 5 axis head with higher precision and long time use
HSK63F high-precision toolholders resist deformation and rust.
The new-generation 610MA 5-axis control system supports 5-axis interpolation (ensuring smooth transitions in complex paths) and tool radius compensation. Length compensation (corrects tool wear errors), resume engraving (avoids workpiece scrapping caused by unexpected stoppages), and a graphical user interface (simplifies programming).
Safety systems:
♦Fully enclosed protective cover (prevents chip splashing and operator accidental contact)
♦Emergency stop button
♦Overload protection (automatically shuts down the spindle if overloaded)
♦Travel limits (prevents overtravel collisions on each axis)

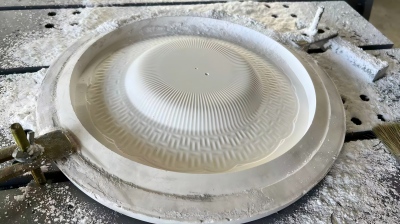

Bathroom Mold Sample Made by 5 Axis Cnc Router RSKM25-H
Home Furnishings Mold made by Five Axis Cnc Machine Center
Other PE,FOAM molds made by Rhino 5 AXIS CNC ROUTER RSKM25-H
Q1: What materials can the 5-axis cnc mold process?
A1: It handles wood, plastic, acrylic, foam, suitable for both industrial production and precision craftsmanship.
Q2: What’s the key advantage of 5-axis over 3-axis machines?
A2: 5-axis models enable simultaneous multi-angle cutting/engraving without repositioning workpieces, reducing setup time, minimizing errors, and supporting complex 3D geometries (e.g., curved surfaces, undercuts).
Q3: Is it easy to operate for beginners?
A3: Yes. It comes with user-friendly CNC software (compatible with Powermill,Fusion 360, Mastercam) and pre-set templates. Basic training (via manual/video tutorials) is sufficient for entry-level use.
Q4: What’s the maintenance requirement?
A4: Routine maintenance includes lubricating guide rails, cleaning spindle motors, and calibrating axes monthly. The machine is designed with modular components for easy part replacement.
Q5: Does it support custom machining sizes?
A5: Standard models cover common workspaces (e.g., 1300×2500×1000mm), but customizations for larger/smaller work areas are available—contact our sales team for tailored solutions.
Q6: What software is compatible with the machine?
A6: It works with most mainstream CAD/CAM software: Powermill, Fusion 360, Mastercam, SolidWorks CAM, ArtCAM, and Grbl-based tools. It also supports G-code direct input.
Q7: What after-sales support is provided?
A7: We offer 1-year warranty (parts + labor), 24/7 technical support via email/phone, and free software updates. On-site service is available for bulk orders or complex installations.
More questions you may have welcome to contact us at anytime by mail/phone/wechat etc
