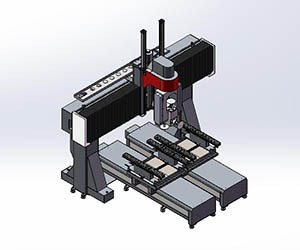

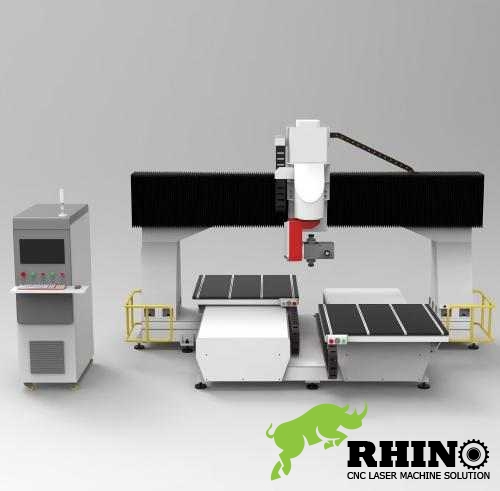

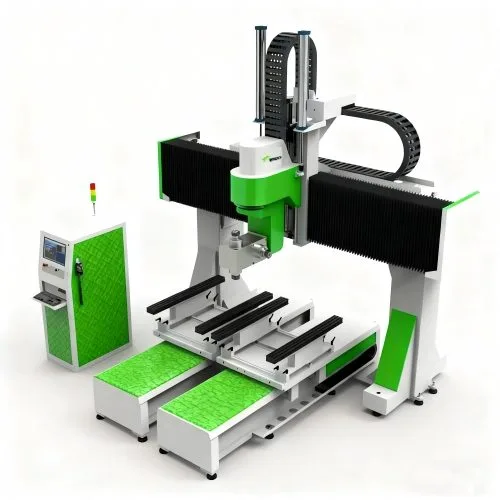

Two Tables CNC Wood Lathe Turning Machine for Chair Table Legs Making
(RSK15-P)
Rhino two tables cnc wood lathe turning machine RSKM25-P is professional for chairs & table legs making with 5 axis head and 4 spindle tools.
It has functions one-time clamping,one-time molding,multi-station double tables processing and milling drilling are completed at one time .
Features of 5 Axis Cnc Wood Lathe Turning Machine for Chair Tables :
1. Double tables working full automatically for same project increase working efficiency
2. 5 axis linkage spindle rotate 0-360 degrees for cutting, drilling,milling,engraving, trimming perfect effect
3. Special spindle with 4 tools 4 heads to finish one wood job together
4. Professional for curve bent surface machining, irregular shape machining, hollowing machining, drilling, slanted holes, beveling, etc
5. Diverse working table size for option : 1200mmx1200mmx800mm/1300mmx2500mmx800mm/1500mmx3000mmx800mm etc
6. Only one time fixing materials, complete work finish
7. Famous Syntec 610MA-E5 control program , 0 failure to use ,long lifetime
8. Customized working table fixture suitable for chairs, table legs milling
9. All kinds of molds prototype can be made on wood, plastic, fiberglass, carbon fiber,aluminum,foam etc
10. Simple operation ,friendly to use
Technical Specifications of Rhino Wood Cnc Lathe Turning Machine :
| Model |
RSK15-P |
RSK16-P |
RSK20-P |
RSK25-P |
| X axis |
1200*2 |
1200*2 |
1200*2 |
1500*2 |
| Y axis |
1200 |
1800 |
2000 |
1500 |
| Z axis |
600/800 |
800 |
800 |
1000 |
| A/C |
+-100 degree/+-540 degree |
| Control system |
TAIWAN Syntec 5 axis system |
| Tool magazine |
Disc type 8-tools magazine/option |
| Working table structure |
T-shaped aluminum profile/vacuum adsorption table |
| Spindle power |
3.7-9kw |
| Spindle rate/type |
0-24000rpm water cooling /air cooling |
| XYZ transmission |
XY axis rack/z axis precision ball screw |
| XYZ repetitive positioning accuracy |
0.05mm |
| Motor and driver |
Japan YASKAWA Bus servo motor drivers |
| Lubrication system |
Automatic positive displacement refueling pump |
| Structure |
High strength steel structure welding bed, annealing treatment |
Function:Cutting,Drilling,Milling,Trimming,Sanding
Application area:Chair shape/ table legs, Bathroom bathtubs, thick-film blistering, computer case shells, sculptural crafts, solid wood furniture, and other non-metallic industries |
Machine Components Detail:
| Name |
Quantity |
| 1.TAIWAN Syntec 610MA-E5 with RTCP function |
1 |
| 2.X axis YASKAWA Servo 2.9kw |
1 |
| 3.Y axis YASKAWA Servo 2.9kw |
2 |
| 4.Z axis YASKAWA Servo 4.4kw |
1 |
| 5.Italy Hiteco 11kw water cooling spindle HSK63F ER40 |
1 |
| 6.X PMI high precisiong grind 2M rack |
2 |
| 7.Y PMI high precisiong grind 2M rack |
2 |
| 8.Z PMI high precisiong ball screw 4040 |
1 |
| 9.X axis HIWIN30 square rail |
3 |
| 10.Y axis HIWIN30 square rail |
4 |
| 11.Z axis HIWIN30 square rail |
8 |
| 12. DELTA 18kw inveter |
1 |
| 13.Germany DAMES 5 axis head L500 series |
1 |
| 14.Factory Quality Inspection Sheet |
1 |
| 15.Central gas storage system |
1 |
| 16.Central lubrication system |
1 |
| 17.ATC Tool holder 12 pieces |
12 |
| 18.Spring clamps and testing tools |
1 |
| 19. Separate control panel |
1 |
| 20. Ladder |
1 |
| 21. AC Air Condition |
1 |
Application Areas of 5 Axis CNC Mold Milling Machine

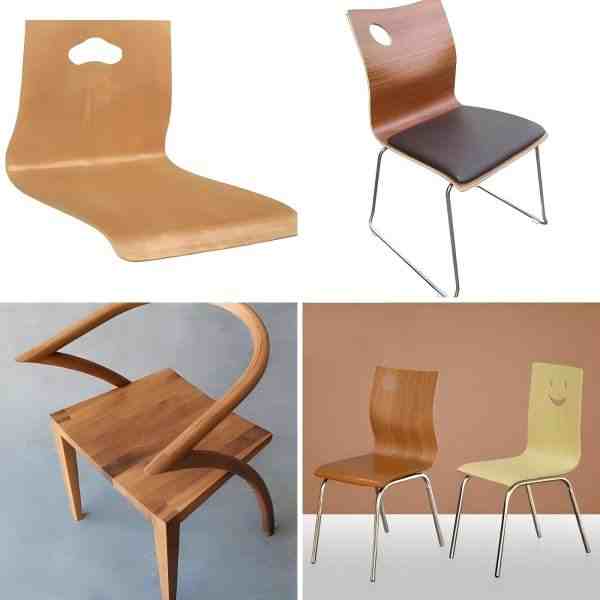

1. Wooden Chairs/ Table legs making
Table Moving CNC Wood Carving Machine can make Wood Legs Coffee House Chairs with good effect
Also can work on wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Sanitaryware Products
♦Processing of finished sanitary ware products
Special-shaped bathroom cabinet
Custom bathtub
Artistic shower head/faucet
♦Processing of bathroom accessories
Glass/stone bathroom screen
Decorative accessories
Ceramic bathroom accessories
♦Sanitary ware mold making
Bathtub/washbasin molds
Accessory molds
3. Arts and Crafts, and Cultural and multiplex Industries
Relief sculpture, 3D engraving & Cylinder object engraving etc
4.Advertising and Signage
Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
5. Other molds in different industry
All kinds of molds made of metal and non metal
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Detailed components of Rhino wood lathe turning machine

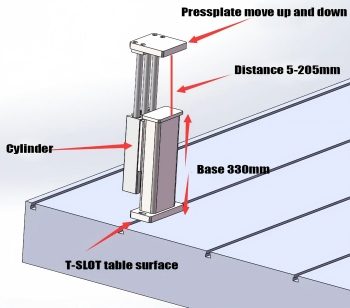

Customized working table better for wood chairs and table legs fixture

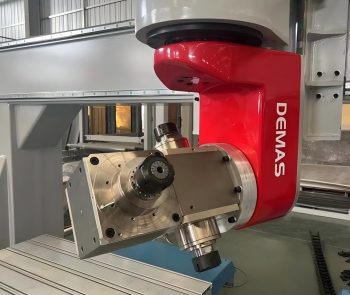

5 axis head with two spindles combination( 4 tools working together)
Columns: The "gantry" dual-column design enhances stability and prevents deformation caused by uneven load on a single column.
Guideways: The mainstream HIWIN45 ball linear guide features high-rigidity transmission, positioning accuracy up to 0.001mm, and enhanced load capacity.
Lead Screw: The German TBI brand ball screw offers extremely low lead error (typically ≤0.005mm/m) and features a preload mechanism to eliminate backlash and ensure precise positioning.
Drive Motor: A 2.9kW Japanese Yaskawa servo motor provides high power and strength.
Spindle Motor: An Italian Hiteco 11kW air-cooled tool change spindle suitable for machining wood, plastic, aluminum alloy, and various hard materials.

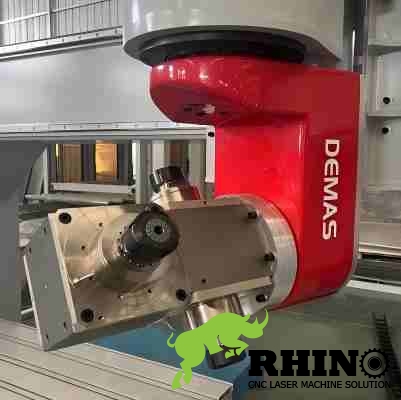

Germany DAMES 5 axis head with higher precision and long time use
HSK63F high-precision toolholders resist deformation and rust.
The new-generation 610MA 5-axis control system supports 5-axis interpolation (ensuring smooth transitions in complex paths) and tool radius compensation. Length compensation (corrects tool wear errors), resume engraving (avoids workpiece scrapping caused by unexpected stoppages), and a graphical user interface (simplifies programming).

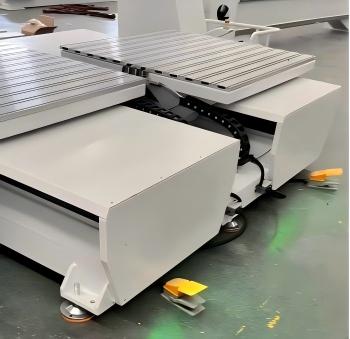

Safety systems:
♦Fully enclosed protective cover (prevents chip splashing and operator accidental contact)
♦Emergency stop button
♦Overload protection (automatically shuts down the spindle if overloaded)
♦Travel limits (prevents overtravel collisions on each axis)

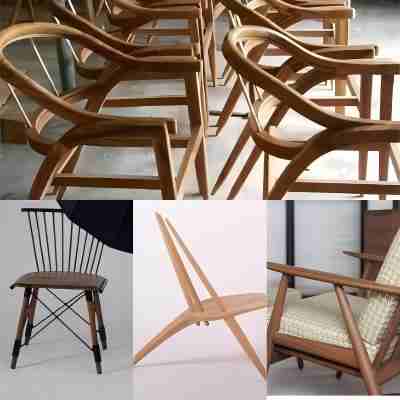

Furniture Chairs, Table legs
Bathroom mold sample made by 5 axis cnc router RSKM25-Z
Home furnishings mold made by five axis cnc machine center
Aerospace and other PE,FOAM molds made by Rhino 5 AXIS CNC ROUTER RSKM25-H

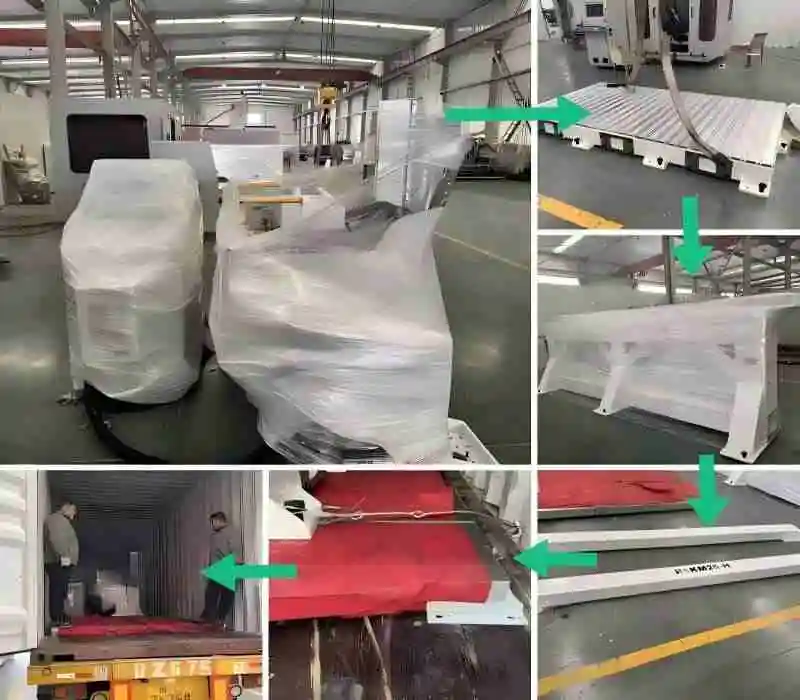

Machine package and delivery photos:
FAQ:
1. What materials can the 5-axis cnc mold machine process?
It handles wood, metal (aluminum, brass, steel), plastic, acrylic, foam, stone, and composite materials—suitable for both industrial production and precision craftsmanship.
2. What’s the key advantage of 5-axis over 3-axis machines?
5-axis models enable simultaneous multi-angle cutting/engraving without repositioning workpieces, reducing setup time, minimizing errors, and supporting complex 3D geometries (e.g., curved surfaces, undercuts).
3. Is it easy to operate for beginners?
Yes. It comes with user-friendly CNC software (compatible with CAD/CAM tools like Powermill,Fusion 360, Mastercam) and pre-set templates. Basic training (via manual/video tutorials) is sufficient for entry-level use.
4. What’s the maintenance requirement?
Routine maintenance includes lubricating guide rails, cleaning spindle motors, and calibrating axes monthly. The machine is designed with modular components for easy part replacement.
5. Does it support custom machining sizes?
Standard models cover common workspaces (e.g., 500×500×300mm), but customizations for larger/smaller work areas are available—contact our sales team for tailored solutions.
6. What software is compatible with the machine?
It works with most mainstream CAD/CAM software: Powermill, Fusion 360, Mastercam, SolidWorks CAM, ArtCAM, and Grbl-based tools. It also supports G-code direct input.
7. What after-sales support is provided?
We offer 1-year warranty (parts + labor), 24/7 technical support via email/phone, and free software updates. On-site service is available for bulk orders or complex installations.
