How to Make a Fiberglass Mold: A Step-by-Step Guide for Strong, Accurate Replicas
Introduction

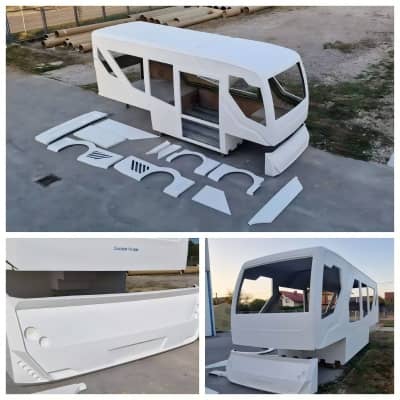

Fiberglass mold making is an essential skill for creating multiple, high-quality replicas of parts, from custom car body panels and boat components to artistic sculptures and industrial prototypes. A well-made mold is the foundation for consistent production. This guide walks you through the core process of creating a durable fiberglass mold, incorporating modern techniques like CNC machining and hot wire cutting where applicable.Why Choose Fiberglass for Mold Making?
Fiberglass (glass fiber reinforced plastic) offers an excellent balance of strength, stiffness, affordability, and relatively easy workability compared to materials like metal. While carbon fiber molds offer superior stiffness and lighter weight for high-volume or demanding applications, fiberglass remains the go-to choice for most hobbyists and professionals due to its cost-effectiveness and forgiving nature. The mold making principles are similar for both.
Step-by-Step: Creating Your Fiberglass Mold
1.Design & Pattern Creation:
The Master: Start with a perfect "master" pattern (plug) of the part you want to replicate. This must be flawless, as any imperfection will transfer to every part from the mold.
Pattern Materials: Common choices include:
♦Clay: For sculpting original shapes.
♦Foam (Styrofoam, PU, EPS): Easily shaped, ideal for complex forms. Hot wire cutters are excellent tools for precisely shaping foam blocks into the basic pattern profile.
♦Wood: Traditional and sturdy. A CNC router is invaluable here for machining complex wooden patterns with extreme accuracy directly from digital designs (CAD).Like Rhino brand 5 axis CNC Router that can make all kinds of molds with high precision and large size .
♦Existing Part: A well-prepared existing part can serve as the master.
Finishing: Sand the pattern meticulously through progressively finer grits. Apply primer, sand again, and polish to a high-gloss finish. This surface quality defines your final mold surface.
2.Pattern Preparation & Release:
Apply Release Agent: This is CRITICAL. Apply multiple thin, even coats of a high-quality mold release wax (like Partall Paste #2) and/or a specialized PVA (Polyvinyl Alcohol) release film. Buff the wax to a high shine between coats. Ensure complete coverage to prevent the mold from bonding to the pattern.
Consider Parting Lines & Flanges: Plan where the mold will split (if multi-piece) and add temporary clay dams or boards to create registration flanges on the pattern itself.
3.Applying the Gel Coat:
Purpose: This pigmented resin layer forms the ultra-smooth, durable working surface of your mold.
Process: Mix tooling gel coat (specifically formulated for high durability and low shrinkage in molds) with its catalyst precisely. Apply an even, thick layer (15-25 mils) to the pattern using a brush or spray gun. Avoid thin spots or runs. Let it cure until tacky.
4.Fiberglass Lamination:
Materials: Use high-quality fiberglass mat and/or woven roving, and laminating resin (often epoxy or vinyl ester for superior molds, though polyester works). Tooling resin is best for minimal shrinkage.
First Layer: Apply a layer of fine surface tissue or lightweight mat over the tacky gel coat using resin. This helps embed the glass and prevent print-through.
Structural Layers: Build up thickness with alternating layers of mat and woven roving. Saturate each layer thoroughly with resin, removing air bubbles with rollers or brushes. Aim for a thickness sufficient to prevent flexing – typically 1/4" to 3/8" for smaller molds, thicker for larger ones.
Add Stiffening: For large or complex molds, incorporate structural supports during lamination: wood braces, foam core, or even steel ribs encapsulated in fiberglass.
Key Tip: Work methodically, ensuring each layer is properly wetted out and consolidated before adding the next.
5.Curing:
Allow the laminated mold to cure fully according to the resin manufacturer's instructions. Controlled temperature and humidity are ideal. Avoid demolding too early.6.Demolding (The Big Reveal!):
Once fully cured, carefully separate the new fiberglass mold from the master pattern. Start gently at the edges using pry tools or compressed air wedges.
Patience is Key: Work slowly around the perimeter, gradually increasing the gap. Do not force it, as this can crack either the mold or the pattern. The release agent should do most of the work.
7.Mold Finishing & Preparation:
Trim Flanges: Cut the mold flanges cleanly using a grinder, jigsaw, or router.Sand & Polish: Lightly sand any rough edges on the flange. Polish the gel coat surface inside the mold if necessary (often it's perfect from the master).
Drill Holes: Add registration pin holes (for multi-piece molds) and any necessary vent or clamp holes.
Final Release: Apply a fresh coat of mold release wax to the entire mold surface before using it for the first time! Reapply wax between parts.
Advanced Techniques & Considerations
CNC Router: Invaluable for creating precise master patterns from wood, modeling board, or dense foam, especially for complex geometries. Directly machines the shape from a CAD file. Usually 4 axis cnc machine and 5 axis cnc machine is mor professional for this moulds making.
Hot Wire Cutter: Excellent for quickly and accurately shaping large blocks of foam into the basic form of a master pattern, especially for wings, hulls, or aerodynamic shapes.
Carbon Fiber for Molds: For high-volume production or parts requiring extreme dimensional stability, consider laminating the mold with carbon fiber fabric instead of fiberglass. This creates a stiffer, lighter, and more thermally stable mold, though at a significantly higher cost.
Mold Supports (Mother Mold): Large or complex fiberglass molds often require an external rigid support structure (jacket or mother mold), usually made from fiberglass or plaster-reinforced burlap, to maintain exact shape during part production.
Pro Tips for Success
Flawless Master: Invest time here. It's cheaper to fix the master than every part from a bad mold.
Cleanliness: Dust is the enemy! Work in as clean an environment as possible.
Release Agent: Never, ever skimp. Apply multiple coats meticulously.
Resin Ratios: Measure catalyst precisely. Incorrect ratios lead to sticky messes or brittle molds.
Bubble Elimination: Roll out air bubbles aggressively in every layer.
Full Cure: Allow adequate curing time at every stage (gel coat tacky, laminate fully hardened).
Conclusion
Mastering fiberglass mold making opens doors to producing high-quality, consistent parts. By carefully creating a perfect pattern, using meticulous release techniques, and laminating with care, you can build durable molds that last for many parts. Incorporating tools like a CNC router for pattern accuracy or a hot wire for efficient foam shaping elevates the process. While carbon fiber offers premium performance for molds, fiberglass remains the practical and effective cornerstone of composite mold making for most applications. Now go forth and replicate!
FAQs:
Q: Can I use a carbon fiber mold instead?
A: Yes! Carbon fiber molds are stiffer, lighter, and more thermally stable than fiberglass, making them ideal for high-volume production or parts needing extreme precision. However, they are significantly more expensive. The core mold-making process (pattern, release, gel coat) is very similar.
Q: What's the best way to make a complex master pattern?
A: For highly complex or precise shapes, a CNC router is the best tool. It machines the pattern directly from a CAD file in materials like wood, tooling board, or dense foam. For simpler curves in foam, a hot wire cutter is very efficient.
Q: Why is the release agent so important?
A: A proper release agent (wax and/or PVA) creates a barrier preventing the fiberglass resin from bonding chemically to your master pattern. Without it, you risk ruining both the mold and the master during demolding. Multiple thin, buffed coats are essential.
