China 1325 Table Moving 5 Axis CNC Router Machining Center for Woodworking Model Sculpture Statue
1. Product Overview
The RSKM25-AB table moving 5-axis CNC router is a high-performance, cost-effective CNC machining center launched by Rhino CNC, specially designed for complex 3D carving, mold making, and multi-angle precision machining. Equipped with a movable single table and upgraded 1000mm-1500mm ultra-high Z-axis stroke, this 5 axis CNC machine supports multi-process integrated machining including milling, cutting, grooving, drilling and 3D stereo carving. It is widely used in automotive molds, aerospace parts, sculpture modeling, furniture processing, and composite material production, becoming the preferred equipment for medium and high-end mold processing enterprises.
This multi-axis CNC machine supports processing of wood, EPS foam, PU, PMI, plastic, fiberglass, composite materials and light aluminum alloy, realizing one-time forming of complex curved surface workpieces and greatly improving production efficiency.
2. Core Advantages of RSKM25-AB 5 Axis CNC Machine
Different from ordinary 3-axis CNC routers, our 5-axis CNC machining center adopts full imported core accessories, with more stable operation, higher machining accuracy and longer service life. Compared with imported DMS series 5-axis equipment, it has ultra-high cost performance and lower overall purchase and maintenance costs.
We support custom single-table and double-table structures to meet different production capacity needs. The whole machine is equipped with official PowerMill software and complete 5-axis post-processing program. We provide free one-on-one professional technical training, enabling zero-basis customers to master programming and operation quickly. All equipment undergoes 3-5 days of full-load precision testing before delivery to ensure stable mass production.
3. Main Performance & Technical Features
1.Professional 5 axis head L500 series with high precision and fast speed and heavy loadGermany DAMES1.
2. for transmission in X/Y/Z axisTBI ball screw / high accurate rack2.
3. Maximum 2000mmx2000mm Large size table moving that can process differentdimension mould and sculptures 3.
4. Italy Hiteco brand fast speed 5 axis spindle motor 10kw with 0-24000rpm water cooled type and air cooling both no problem
5. TAIWAN Syntec intelligent 5 axis PLC control system with separate control panel
6. TAIWAN Syntec EtherCAT Bus servo motor drivers with simple connection, easy operation and fast reaction speed features
7. This machine with spindle 0-360 degree are mainly used for milling, cutting,engraving,slotting,trimming,drilling different models and sculptures
8. A key advantage of our moving-table 5-axis CNC machine is its far more competitive price compared to DMS 5-axis routers, paired with premium branded components for extended service life.
9. No matter one table or two tables moving both we can make with high quality
10. We offer you PowerMill and its post processer whole one set together with machine and we offer you training online until you learn it well.
4. Wide Application Industries
This 5 axis CNC router covers almost all precision mold and 3D modeling processing industries, with strong versatility:
- Automotive Industry：Car prototype model, automobile interior accessories, tire mold, automotive foam mold processing
- Aerospace Industry：Aviation parts molds, propeller, turbine blade special-shaped modeling
- Composite Material Industry：FRP molds, vacuum forming molds, rubber and plastic structural parts
- Casting Industry：Wooden casting molds, lost foam molds, composite casting molds
- Furniture Industry：Solid wood chair legs, curved handrails, tenon and mortise structure, 3D solid wood carving
- Ship Industry：Ship accessory molds, marine special-shaped structural parts
- Model Making Industry：Real estate sand table models, industrial 3D prototype models
- Cultural & Tourism Sculpture Industry：Film and television props, theme park sculptures, art 3D stereo carving
5. Applicable Materials
The RSKM25-AB 5 axis CNC machine supports diversified material processing:
EPS/PU/PMI foam, carbon fiber, plastic, mold board, fiberglass, clay, composite material, solid wood, light aluminum and other non-metal and light metal materials, meeting various mold making and precision carving requirements.
6. Complete Technical Parameters
| Item |
Main specifications |
Working space |
X axis working space |
mm |
1600 |
| Y axis working space |
mm |
2500 |
| Z axis working space |
mm |
800 |
| A axis working space |
° |
± 110 |
| C axis working space |
° |
±360 |
| Gantry width |
mm |
3050 |
| Z axis height range |
mm |
150~950 |
Working table |
Table size |
m |
1.6x2.5 |
| Max loading of table |
t |
1 |
| T-SLOT size |
/ |
Customized |
Movement |
Maximum cutting speed X/Y/Z |
m/min |
10/10/10 |
| Maximum cutting speed A/C |
°/s |
120/120 |
| Fast movement speed X/Y/Z |
m/min |
30/30/15 |
| Fast movement speed X/Y/Z |
m/s2 |
2.5/2.5/2.5 |
| Fast movement speed A/C |
°/s2 |
60/60 |
5 axis DAMES brand L500 |
Drive mode |
|
Electronic spindle |
| Spindle rpm |
rpm |
24000 |
| Spindle power (S1/S6) |
kW |
3 |
| Spindle torque (S1/S6) |
N.m |
|
| Spindle taper hole |
/ |
|
ATC Tool magazine |
Tools quantity |
T |
Option |
| Tool holder model |
T |
|
| Max diameter of tool |
mm |
40 |
| Max length of tool |
mm |
100 |
| Max weight of tool |
kg |
1 |
Positioning accuracy (execution standard)
GB/T 17421.2-2000) |
X axis |
mm |
0.2 |
| Y axis |
mm |
0.25 |
| Z axis |
mm |
0.15 |
| A axis |
″ |
±5″ |
| C axis |
″ |
±5″ |
| Repetitive positioning accuracy (execution standard) GB/T 17421.2-2000) |
X axis |
mm |
0.02 |
| Y axis |
mm |
0.015 |
| Z axis |
mm |
0.012 |
| A axis |
″ |
±3″ |
| C axis |
″ |
±3″ |
Others |
Total current |
kVA |
30 |
| Control system |
/ |
SYNTEC |
| Total weight |
t |
about 4 |
| Total dimension |
mm |
About 4000x3100x3600 |
7. Standard Accessories
- 5PCS customized extended milling cutters for EPS, foam and aluminum
- Electric cabinet air conditioning heat dissipation system
- Complete operation videos, installation drawings and user manuals
- Independent handheld remote controller & wireless handwheel
- 12 sets of automatic tool change cutters and tool seats
- Industrial water chiller for spindle constant temperature cooling
- Complete machine maintenance tool kit
- Genuine PowerMill software & full 5-axis post-processing program
- High-precision automatic tool setter
8. Rhino 5 axis CNC machine center RSKM25-AB 5 axis Detail Components
• Rhino 5 axis cnc router structure and table heavy type total machine weight more than 4000kg
• DAMES 5 axis head and Italy Hiteco water cooling spindle with B/c AXIS that can rotate 360 degree
• PLC 5 axis Syntec control program with control panel, hand wheel and remote wireless wheel .
Syntec servo motor and drivers equipped with Syntec system make sure value transfer fast and no mistake.
• Our moving table 5 axis cnc router also can make double tables with 4 spindle heads making diversified working performance , also increase working efficiency.
We have better machine structure and components with advanced 5 axis technology, but our machine price is much cheaper than DMS CNC 5 axis routers
9. Application Cases
Molds in Fiberglass/carbon fiber molds etc all kinds of composite materials
Foam sculpture/mould

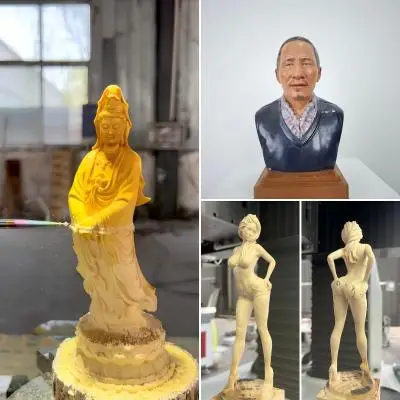

Wood Mold Sculptures
10. Factory Documents & Certificates
Each machine is delivered with complete official documents: product qualification certificate, packing list, operation manual,
electrical instruction book, equipment schematic diagram, Syntec system manual, AC axis linkage operation manual,
spindle and chiller user guide, ensuring global after-sales and customs clearance support.
11. FAQ:
Q1, Could you make different table size as per my requirement?
A: Yes, we can customize any table working size and we will make drawing after that then show to you for your confirmation , after confirm no problem we start production.
Q2, What software and post processer you will supply together with this machine ?
A: We have professional Powermill and UG software to help you make design and with their 5 axis post processer to offer to you.
The most popular 5 axis post processer is PowerMill 2017 version with its PM 5 axis post processer.
Q3,If I buy this machine what is kind of service I can get:
A:Machine warranty 2 years for free and long life time serice and we have professional engineers who are responsible for service. We offer online/telephone/email service 7x24 hours.
We have online talking group in WhatsApp and Wechat with engineers and customers
Q4,What information you need to know before I get offer from you?
A:Firstly we need to know the working size you need and what is materials you want to mill and process so that we will offer you the best solution for this 5 axis cnc router machine
Q5,What is the delivery time for this 5 axis cnc machine ?
A:Usually we can make it ready within 30 days and need 3-5 days to inspect it perfectly with high accurate and good working performance then can delivery immediately
Q6,How to use this software and can i get training from your side?
A:Yes, we have engineer who work this two softwares so you can come our factory or we send them to your company to give you training
Q7,Could you customized this 5 axis cnc router machine as per our detail requirement?
A:Yes, you give us all your detail requests and we make agreement then start machine production
12. Machine Package and Delivery
All RSKM25-AB 5 axis CNC routers adopt standard export wooden box packaging, equipped with anti-collision bracket and leveling base to avoid damage during long-distance transportation.
After delivery, we provide one-stop services including installation guidance, equipment debugging, technical training and after-sales maintenance, helping customers put into production quickly and create benefits.
Note: All machines support personalized customization. Please contact us for the latest quotation and detailed configuration.
