Rhino new vertical 3D rotary 5-axis CNC router delivers fast speed and high precision, which is specially designed for vertical mold and sculpture production.
The working diameter ranges from 100mm to 1000mm, and the milling height can be customized from 1m to 2m. This machine is compatible with various wood, plastic and foam materials, as well as stone.
Now RSKM20-A is available at promotional price!

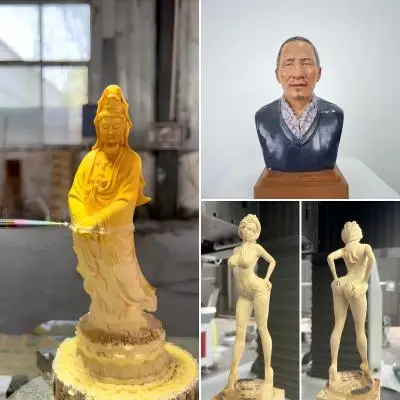

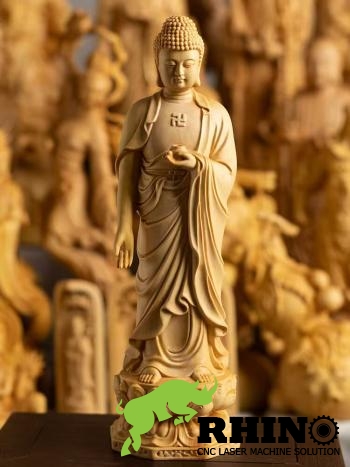

The machine is widely used for theme park decorations, movie props and humanoid sculptures.
Processing for wooden chairs, chair legs, mortise and tenon structures, solid wood curved surfaces and hand rail elbows.

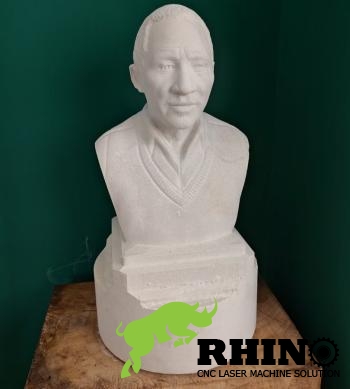

Produce wooden patterns, lost-foam casting patterns and composite material patterns.
Available for all kinds of 3D shapes and real estate models.
Various non-metal materials: wood, foam, stone, PS / PU / PMI foam, plastics, tooling boards, modeling clay and all types of solid wood.
| Model | RSKM20-A |
| Name | Vertical 5 axis cnc router machine |
| Working size | 600mmx1000mm |
| X axis working size | 1000mm |
| Y axis working size | 1000mm |
| Z axis working size | 1000mm |
| C axis working range | 0-360 degree |
| A axis working range | 0-90 degree |
| Working speed | 30m/min |
| Supported Program | Syntec/LNC/FOINNC/MACH3 (4 axis & 5 axis compatible) |
| Electronic Parts | Schneider |
| Air Control Parts | Festo |
| Motor Drivers | Yaskawa 1300w |
| Rotating table diameter | 600mm |
| Milling height | 1000mm |
| Voltage | 380V 3-phase / 220V single phase |
| Working mode | 380V 3-phase / 220V single phase |
| Tool collect size | 3.175/4/6/8/10/12.7mm |
| Spindle power | 4.5KW-9.0KW |
| Oil system | Automatic |
| Warranty | 3 years free warranty |
We can customize machine table size according to your actual requirements.
1. 4.5KW air cooling spindle, optional power: 5.5kw/6kw/7kw/9.0kw
2. High precision rotating structure, spindle tilts 0-90 degrees
3. Syntec 5 axis 610WE control system with RTCP function, supports XYZAB five-axis synchronous operation
4. High precision rotary table with 0-360° rotation for vertical processing
5. Japan YASKAWA servo motor driver ensures high machining precision
6. HIWIN25 square linear rail, high accuracy and fast movement
7. Germany TBI ball screws installed on XYZ axes to guarantee high precision
8. High-quality Schneider electronic parts and cables for control box
1. 5 pieces customized milling tools for EPS, foam, aluminum etc.
2. Air conditioner for control box heat dissipation
3. Machine operation video, installation drawing and operation manual (provided in CD)
4. Separate remote control handle
5. Automatic tool changer with 12 tool holders
6. Industrial water chiller for spindle cooling
7. Complete operation tool box
8. Software and matched post processor (provided in CD)
9. High precision automatic tool sensor
| Number | Item | Quantity | Remark |
| 1 | Block of leveling the base | 1 set | |
| 2 | Machine transportation protection bracket | 1 set | |
| 3 | >Tools | 1 set |
| Number | Item | Quantity | Remark |
| 1 | Certificate of Compliance | 1 set | |
| 2 | Packing list | 1 set | |
| 3 | Manual | 1 set | |
| 4 | Electrical instruction | 1 set | |
| 5 | Schematic diagram | 1 set | |
| 6 | Syntec manual | 1 set | |
| 7 | Syntec program manual | 1 set | |
| 8 | A/C link movement manual | 1 set | |
| 9 | Spindle manual | 1 set | |
| 10 | Water chiller manual | 1 set |
A: It is mainly used for processing all kinds of 3D curved surfaces, vertical molds and sculptures.
A: Yes. We will make design drawings for confirmation before formal production.
A: It supports both 4-axis and 5-axis modes. The genuine 5-axis version is equipped with RTCP function to realize five-axis synchronous machining.
A: The spindle tilts within 0-90°, and the bottom rotary table rotates 360° continuously to fix and process workpieces.
A: We supply PowerMill and UG software with matched post processors. PowerMill 2017 is the most stable and widely used version.
A: We provide 2 years free warranty and lifelong maintenance service. 7×24 online technical support via WhatsApp, Wechat, phone and email is available.
A: Please tell us your required working size and processing materials, so we can recommend the most suitable configuration.
A: The production cycle is about 30 working days, plus 3-5 days of full inspection and testing before delivery.
A: Yes. You can send technicians to our factory for training, or we can arrange engineers to your site for on-site guidance.
A: Yes. We can fully customize the machine based on your detailed requirements and sign a technical agreement before production.
If you have any questions or need a custom quotation, please feel free to contact us anytime.
