CNC Diamond Wire Saw Cutting Machine for Foam Polyurethane Foamed Ceramics EVA PU Cutting

CNC Diamond Wire Saw Cutting Machine for Foam Polyurethane Foamed Ceramics EVA PU Cutting

Item No.: RC-1325

Model:RC-1325
FOB Price:
US $1000 -10000/ Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
900 Set/Sets per Month
Port:
QingDao/YiWu/ShangHai/Guangzhou/NingBo
Payment Terms:
T/T,Western Union,paypal

$1000.00

INQUIRY PDF Format

Description

CNC Diameter Wire Saw Cutting Machine for Foam Polyurethane Foamed Ceramics EVA PU Cutting

CNC Polyurethane Foam Cutting Machine with wire saw

This Rhino CNC Diameter Wire Saw Cutting Machine (RC-1325) adopts a high-precision NC control system and reciprocating diamond wire-saw structure for 2D contour shape cutting. It is specially designed for cutting rigidty Polyurethane Foamed Ceramics EVA PU,insulation board and other flexible materials.The machine runs stably, features high cutting accuracy and easy operation. It quickly processes complex 2D shapes including straight lines, arcs, bevels and special profiles, widely used in packaging, furniture, construction, automotive interiors, insulation engineering and model making to improve efficiency and reduce material waste.

Rhino CNC Polyurethane Foam Cutting Machine Highlights

CNC PLC control system, precision up to 0.01mm
Diamond Wire saw cutting, smooth edge, no burrs
Support DXF/DWG CAD file import
Heavy-duty frame, stable & durable
Suitable for foam, sponge, EVA, insulation materials

Core Advantages of CNC Foam Cutting Machine

1. Whole steel welded structure
2. High accuracy table moving movement
3. Different diameter strong diamond cutting wire
4. Separate control box, easy to operate industry computer
5. High power servo motor drivers
6. Water cooling system safety sensor, auto lubrication
7. Smooth cutting edge, no secondary grinding required
8. Dual saw wires for higher productivity
9. Support .dxf / .dwg CAD graphic import Compatible with .nc / .tap standard G-code
10. Built-in graphics editing & programming software
11. Handwheel for fine adjustment, easy tool setting
12. 300mm wear-resistant polyurethane coated wheels
13. Y-axis bellows dust cover to protect rails & screws
14. High-flex shielded cables, anti-interference & long service life
15. Electric gear pump lubrication system, low maintenance

Applicable Materials

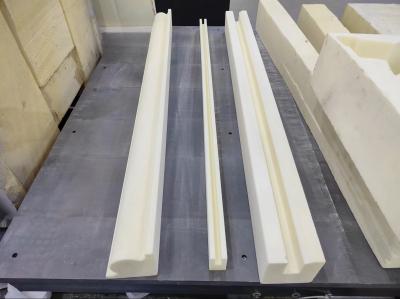

Rigid polyurethane pattern foam cut by wire cnc cutting machine

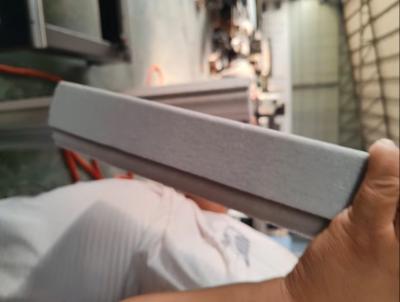

Fiberglass Epoxy Board cut by cnc wire cutter

High-density Rigid PU foam/Rigid polyurethane pattern foam/PU modeling foam/PU tooling foam Fiberglass Epoxy Board (or POM acetal plastic)

Soft modeling materials: rigid PU foam, EPS foam, wood, modeling board.
Foamed Ceramics,Carbon fiber composite,PP
Hard engineering plastics & composite plates: epoxy laminate, bakelite, POM, fiberglass board, graphite.
Brittle hard materials: ceramic, glass, marble, silicon carbide etc

Industries of Application of RC-1325 CNC Wire Saw Cutter

Pattern & Mold Industry : Cut rigid PU foam, modeling wood, epoxy board and bakelite for FRP molds, sanitary molds and decorative mold blanks.
Fixture & Tooling Industry: Process fiberglass sheets, POM and graphite to make guide strips and positioning jigs.
Building Decoration Industry: Cut wood strips, EPS foam and architectural decorative moldings.
Stone & Craft Industry: Precision cutting for marble, jade, glass, ceramic and graphite.
New Energy & Electronics Industry: Machining silicon, quartz, silicon carbide and ferrite materials.
Aerospace Composite Industry: Blank cutting for fiberglass and carbon fiber panels.

Technical Parameters

No.	Item	Technical Requirements	Remarks
1	Control System	Xingduowei controller with hand wheel
2	Servo Motor	Divexion pulse servo motor
3	Driving Motor	4KW motor
5	Drive Screw	X-axis: 1.5M helical rack
		Y-axis: TBI3210 ball screw
6	Guide Rail	TWIN25# precision linear guide rail
7	Electric Cabinet	Industrial design computer operation control cabinet
8	Cable	Changtong high-flexibility shielded cable
9	Dustproof	Y-axis bellows dustproof cloth
10	Driving Wheel	300mm wear-resistant polyurethane coated wheel
11	Applicable Cutting Wire	0.5-2.5mm
12	Lubrication System	Electric gear pump + quantitative distributor
13	Bed Structure	Thickened square tube welding, overall annealing treatment
14	Workbench	Profile table
15	Stroke	X-axis: 2500mm
		Y-axis: 800mm
17	Workbench Size	1300mm*2500mm
18	Processing Speed	0-1500mm
20	System Resolution	0.01mm
21	Power Supply	380V three-phase five-wire 50Hz
22	Air Supply Requirement	0.65Mpa
23	Graphic Format	.dxf, .dwg and other CAD graphics
24	System Code	.txt, .nc, .tap and other standard G codes
25	Programming	Built-in graphic processing and programming software
26	Saw Wire	2 pieces

Polyurethane Foam Cutting Machine RC-1325

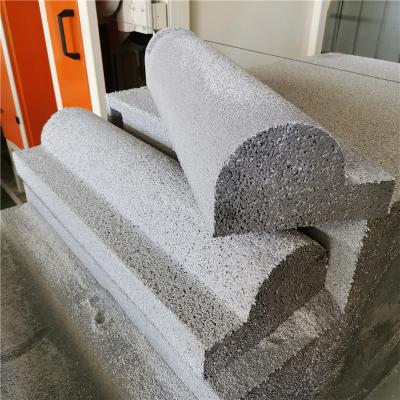

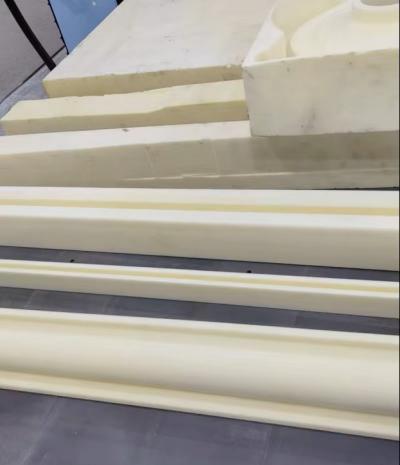

Cutting Samples

Frequently Asked Questions

Q1: What materials can this CNC wire saw cut?

A1: It specializes in non-metal & non-conductive materials:
• Mold materials: Rigid PU modeling foam, EPS foam, modeling wood
• Engineering plastics & composites: Epoxy fiberglass board, bakelite, POM, carbon fiber sheet
• Brittle materials: Graphite, ceramic, glass, marble, jade
Note: It cannot cut iron, steel and other metal materials.

Q2: What is the difference between wire saw and CNC router?

A2:
• Wire saw: For 2D contour cutting only. Ultra thin cutting kerf, low material loss, smooth cutting surface, no chipping, little dust, perfect for long strip blank cutting.
• CNC router: For 3D carving, grooving and cavity milling. It finishes detailed mold shaping after wire saw blanking.

Q3: What industries is this wire saw applied to?

A3: FRP mold making, fixture & tooling processing, building decoration, handicraft stone processing, new energy material cutting, composite material processing.

Q4: What are the core advantages of this abrasive wire saw?

A4: Narrow cutting seam, no tool marks, less polishing work, no edge chipping on fragile foam/epoxy parts, energy-saving, low dust, high efficiency for profile cutting.

Q5: Can this machine make 3D carved products?

A5: No. It only completes 2D flat profile cutting. We suggest matching with a CNC milling machine for secondary 3D finishing.

Q6: Is the machine easy to operate?

A6: Equipped with easy CNC control system. We offer English operation manual, programming tutorial and online technical support.

Q7: How about after-sales service?

A7: We provide one-year warranty, free wearing parts consultation, global online after-sales support and overseas engineer debugging service.

Our Service

Factory direct supply, stable quality
Whole machine warranty & lifetime technical support
Free installation, commissioning & operation training
Professional after-sales team, fast response
Custom size & functions available

Contact & Inquiry

Professional Manufacturer of Polyurethane Foam Cutting Machines Custom shape cutting · OEM/ODM accepted · On-site installation & training Welcome to contact us for quotation, factory visit or free sample cutting!
