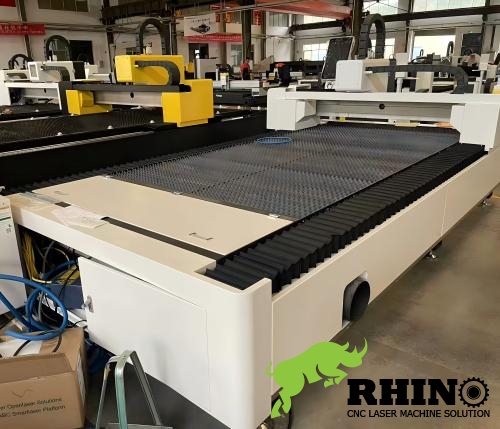

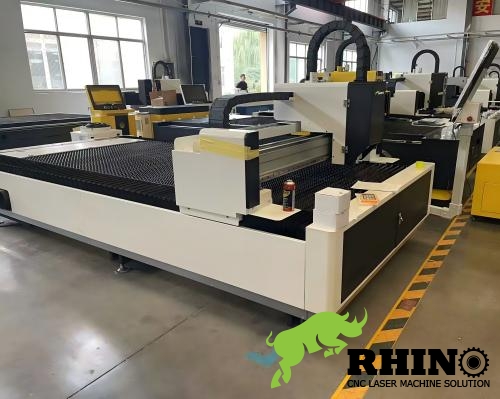

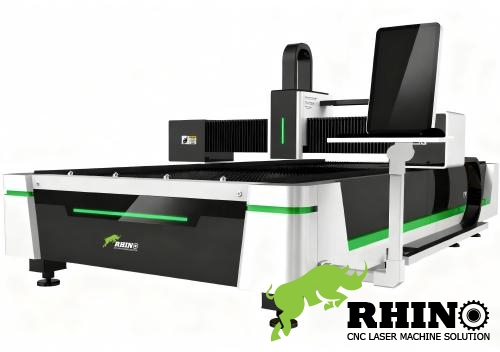

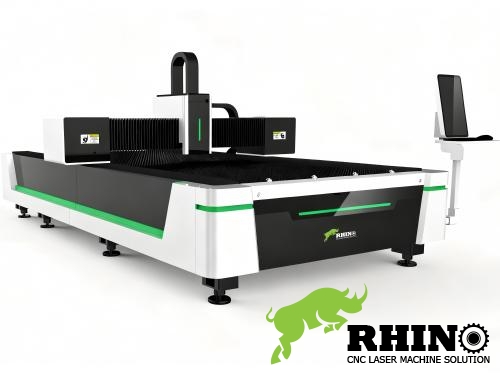

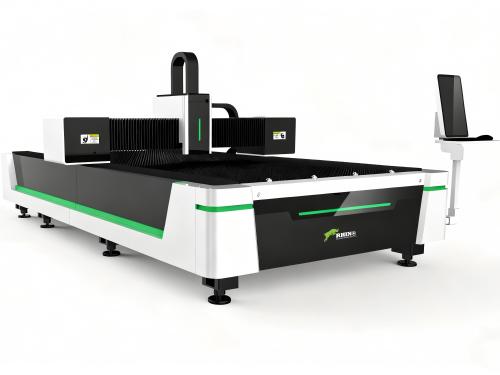

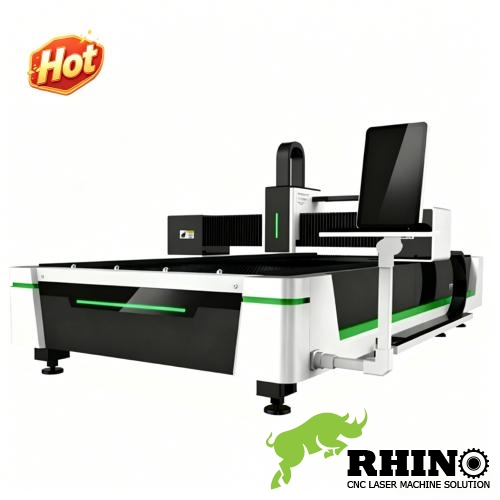

CE 3KW Laser Metal Cutting Machine RF-1530-3000 for Thick Steel Aluminum Copper Cutting

This is Rhino heavy frame industrial metal laser cutting machine with fiber 3000kw. It can cut all kinds of metal sheet with max size 5x10ft and thickness from 0.1mm to 20mm .
This machine RF-1530-3000 is widely used in sheet metal processing, advertising signage, hardware manufacturing, auto parts, medical devices and other industries.
Now price for promotion !

Advantages of Metal Laser Cutting Machine RF-1530-3000 :

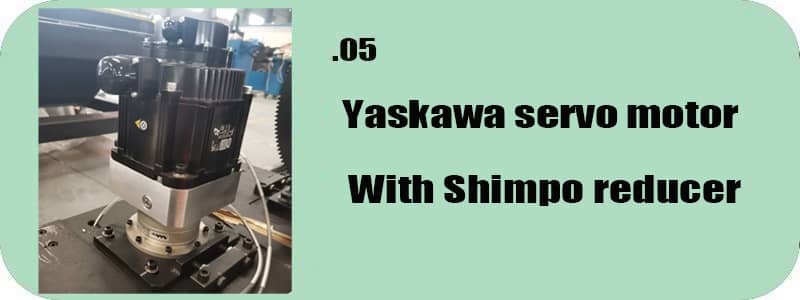

1. Ultra-high precision cutting: Equipped with a servo motor drive and ball screw transmission system, combined with an imported laser head, it achieves micron-level positioning, solving the cutting challenges of complex graphics and delicate parts, and meeting the requirements of high-precision laser cutting.

2. High-efficiency and stable operation: The laser generator power is selectable from Raycus 3000kW (1500W/2000W/4000W/6000W, etc.), with a cutting thickness of 0.1mm-20mm (metal). It can work continuously for 24 hours without failure, suitable for mass production laser cutting scenarios.

3. Intelligent and convenient operation: Equipped with a Chinese touch control system, it supports direct import of CAD/DXF format files and has built-in graphic editing functions, allowing beginners to quickly get started and lowering the operating threshold of the laser cutting machine.

4. Energy-saving and environmentally friendly design: Laser cutting consumes only 1/3 of the energy of traditional cutting equipment, with no dust or noise pollution, meeting environmental standards and creating a green production laser cutting solution. 5. High Durability: The machine tool is welded from thickened steel plates, making it rust-proof and corrosion-resistant. Core components have a 2-year warranty and lifetime maintenance, reducing the operating costs of the laser cutting machine.

6. Laser source has a two-year global warranty: CE version offers fast after-sales in the world different countries at local service at low cost.

Application materials of fiber laser cutter machine RF-1530-3000:

Carbon steel,
Stainless steel,
Galvanized steel,
Aluminum alloy,
Titanium alloy,
Gold,
Silver,
Aluminum,
Brass,
Copper tight sheet metal accessories and other metal materials

Application Area of metal laser cutter RF-1530-3000

Machine main components

3000W Fiber Source

No.1 top brand in the world market with high precison ,fast speed and no burrs on the cutting pieces.
With a power output of 20kW or higher, the cutting speed of a 30mm steel plate reaches 1.5m/min.


RF-1530-3000 Laser cutting head

1. Fiber laser cutting head,which has Z axis follow-up function. Highly sensitive and follow-up cutting head applies capacitance sensor monitoring, offering automatic adjusting function with stable and fast cutting.
2. All kinds of matching design of nozzle are applied to lens with many focuses and can also be equipped with optical lens with different focuses.
3. The focus and nozzle can be adjustable flexibly, including adjusting lens on X-Y direction and nozzles on the same axis.

Control Box

The control box of fiber laser cutting machine RF-1530-3000W is configured separately to reduce interference and easy to maintain.
To ensure the stability and avoid signal interference，we use the following measures based on electrical technology
1. The main circuit and control circuit are connected by wires separately bypass.
2. The wire of main controller use shielded or twisted wire.
3. The connection of motor and driver use separate outlet to avoid parallel with other wires.
4.  I/O interface chip、controller、sensor and the connector are as close as possible.5. The connect wire between upper and lower equipment use the Aerial plug connector and Weidmuller terminal block.

Safety Protection System

1. Laser module protection
2. The laser module have warning sign to introduce the laser out avoid harm from direct laser；
3. The cover have ground connection to avoid hurt from leakage.
4. The operator need to wear suitable laser protection glasses throughout the operation；
5. Make sure the protection equipment have no wear and tear before operating；
6. Do NOT look the laser out head at any time when the device is powered；


External Transmission fiber Protect section

1. The workstation of external transmission fiber ，use imported high quality guide pulley and Limit device to fix and guide laser cable；
2. The transmission fiber have protective cover made of special laser protection material to prevent the laser leak；
3. The protective cover of transmission fiber have leak sensor,if the fiber fractured to cause the laser leak,the sensor will transmit the signal to control center immediately,then the control center will stop the laser equipment and alarm.

RF-1530-3000 Main Parameters:

Different Material Cutting Thickness List

Zincoat Sheet / Gold ,Silver/ Brass/ Copper

Thickness(mm)	Speed(m/min)	Pressure(Mpa)	Gas	Height(mm)
0.5	17-18	1	N2	0.6
1	15-17	1.1	N2	0.6
2	4-4.5	1.5	N2	0.6
3	1.5-1.7	0.4	N2	0.6
4	0.8-0.9	0.15	N2	0.6

Carbon Steel

Thickness(mm)	Speed(m/min)	Pressure(Mpa)	Gas	Height(mm)
1	10-12	1	O2	1
2	5-6	0.5-0.8	O2	1
3	2-2.5	0.25-0.4	O2	1
4	1-2	0.15-0.2	O2	1
5	1-1.2	0.15-0.2	O2	1
6	1-0.8	0.1-0.15	O2	1
8	0.8-0.9	0.1-0.15	O2	1
10	0.6-0.65	0.1-0.15	O2	1
12	0.6-0.65	0.1-0.15	O2	1

Aluminum

Thickness(mm)	speed(mm/s)	Pressure(Mpa)	Gas	Height(mm)
1.5	120-130	1.1	N2/Air	0.8
2.5	60-70	1.1	N2/Air	0.8
3	30	1.1	N2/Air	0.8
4	10	1.1	N2/Air	0.8



---

---

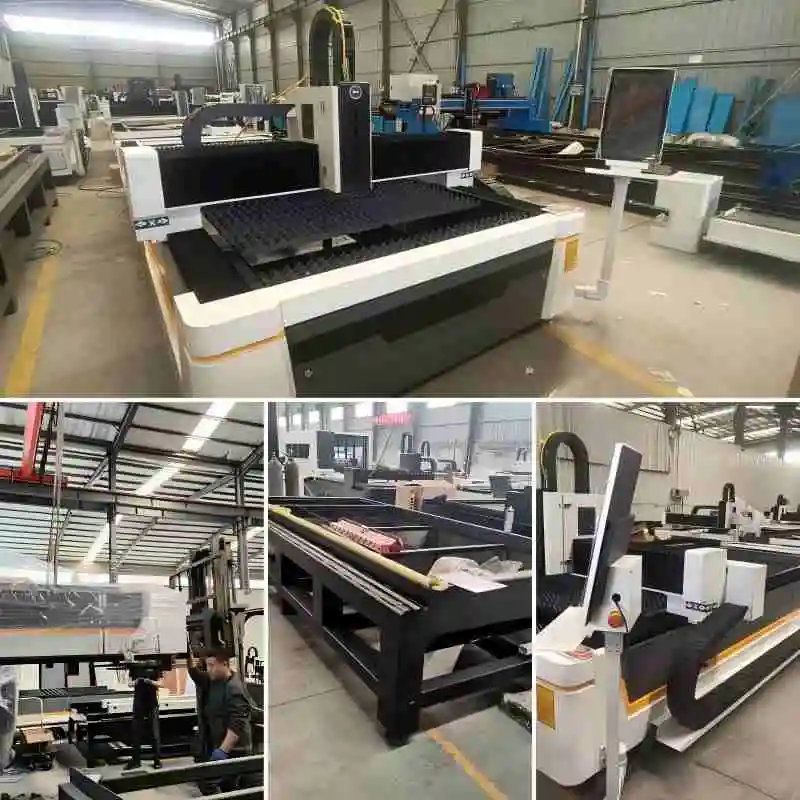

Rhino Fiber Laser Metal Cutting Machine Detailed photo show

---

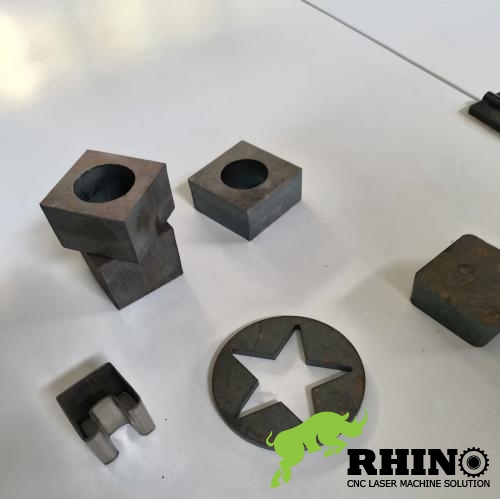

Cutting samples from RF-1530-3000W

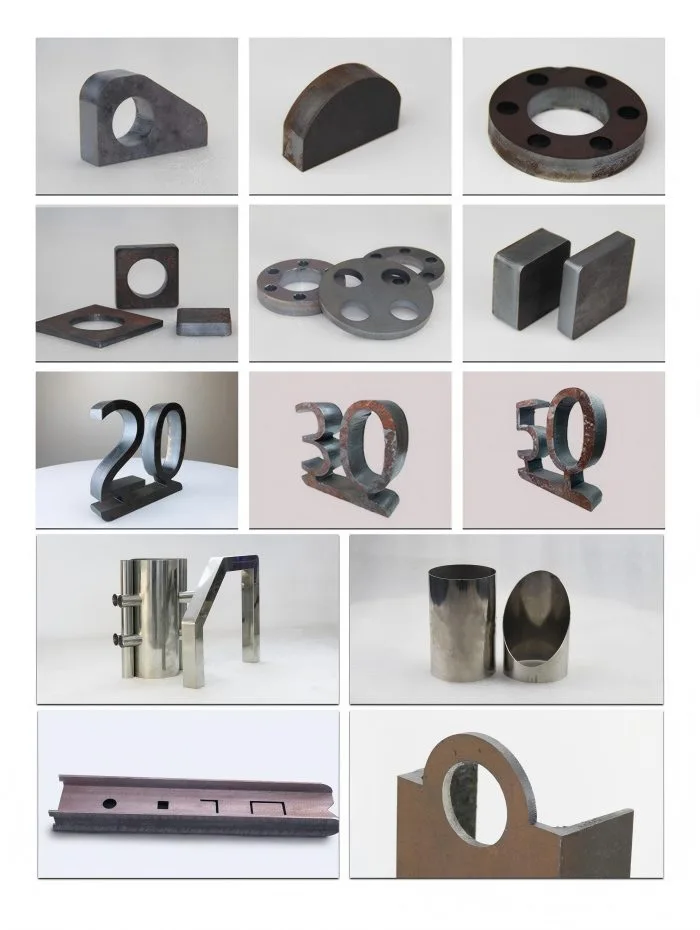

Thick material cutting from 10mm-20mm

Thin material cutting from 0.1mm-5mm


---

Machine package and delivery

Since this model RF-1530-3000W package width 2.3meter we only can put it on the wooden pallet but we will tight it perfectly and fix it well inside of container so no need any worry about the transportation no matter by sea or by train.

---

FAQ

Q1,What is warranty and service you have?
A:Machine warranty 2 years for free and long life time serice and we have professional engineers who are responsible for service. We offer online/telephone/email service 7x24 hours.
We have online talking group in WhatsApp and Wechat with engineers and customers
Q2,How can I confirm machine specifications?
A:Firstly we need to know the working size you need and what is materials you want to cut also if you have your own requirements let me know at anytime please
Q3,What is software of machine you use?
A:We use Cypuc standard version that professional for thick metal cutting solution perfectly
Q4,Do you offer training for the softwares?
A:Yes, we have engineer who work this two softwares so you can come our factory or we send them to your company to give you training
Q5,Could you customized this fiber laser cutting machine as per our detail requirement?
A:Yes, you give us all your detail requests and we make agreement then start machine productime

---

We have two workshops one for cnc router production and another for laser cutting machine production.
Every month export more than 100 machines to different countries like India.Thailand,Europe and America etc
Now we are looking for more agents in whole world and win-win together in globe market.
