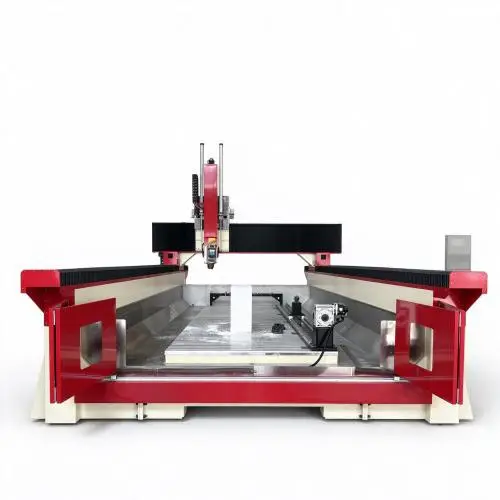

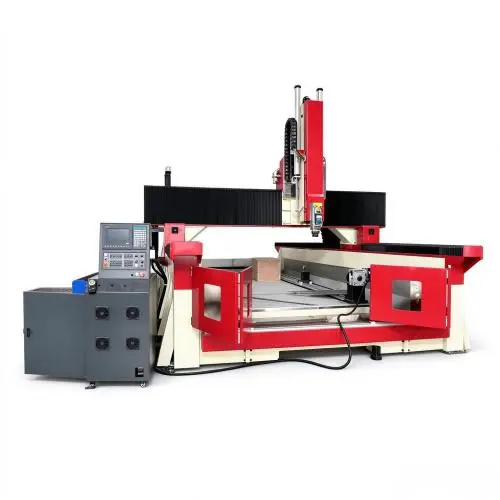

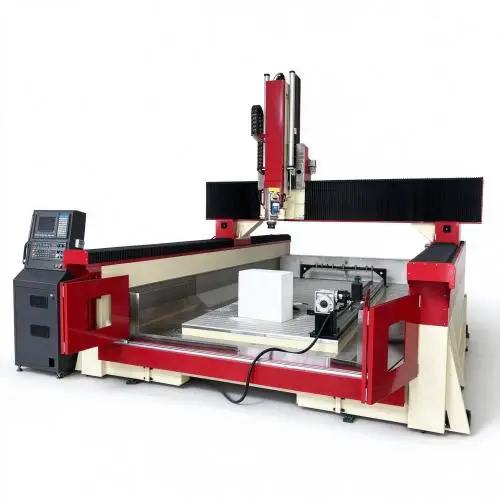

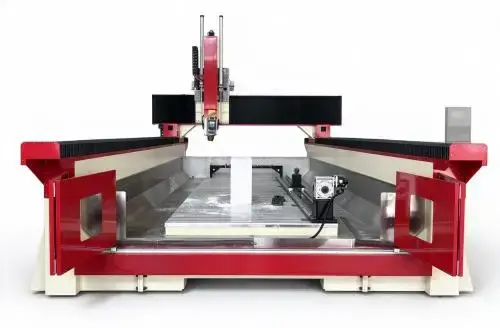

Rhino 4 Axis Stone CNC Router for Cutting Engraving Drilling Milling on Marble Granite
Rhino 4 axis stone cnc RSKM25-H is adopted advanced Syntec 4 axis system for stone cutting engraving especially on marble and granite.
It is the most suitable deep processing equipment for special-shaped factories such as home decoration or municipal engineering etc.
► Features of Rhino 4 Axis Stone CNC Cutting Machine
1. Advanced Syntec 4 axis system 60WE controller support ATC and rotary function, stable to use with intelligent algorithms
2. The whole machine is operated by a four-axis CNC system and precision servo drive, which greatly exceeds the traditional stone cutting machine in speed and precision.
3. Auto too changer 12 pieces support different cutter, drilling head and saws for stone
4. Steel welded T-SLOT working table with large size 4500mmx2010mmx800mm
5. Full closed water table and water tank suitable water recycling in stone cutting
6. Hiteco 15kw water cooling spindle big power and strong to work on all kinds of stone materials
7. Machine frame heavy materials which is durable and don't deform. Key parts of machine are imported high-quality accessories, with high processing precision, large production capacity and higher degree of automation
8. Z axis TBI ball screw transmission have more durable wear resistance after high heat treatment, and the serive life of whole machine is extended
9. Rotary as 4th axis diameter 300mm can work stone column and foam 3D models easily
10. Heavy frame and big power spindle make sure process stone slabs, marble, artificial stone, granite and other stones perfectly
11. The new drag chain is adopted to separate the signal line and power line according to the specifications, better defend against signal interference, and the internal partition of the drag chain is fixed to prevent the cables from being twisted together during work. The cable adopts imported high-flexibility shielded wire, which has a longer service life.
► Specification and Parameters for Stone CNC Machine
| Model |
RSKM25-H |
| Working size |
4500*2010*800mm |
| Safety Distance |
435mm from z top point to table |
| Table size |
2500*6200mm*2060mm |
| Body structure |
Steel structure |
| Working table |
T-SLOT working table+water slot |
| X Positioning accuracy |
0.1mm ~ 0.045mm |
| Y Positioning accuracy |
0.1mm ~ 0.02mm |
| Z Positioning accuracy |
0.1mm ~ 0.008mm |
| Z Axis safety distance |
435mm |
| Traveling speed |
40m/min |
| Working speed |
25m/min |
| Spindle |
Italy HITECO 5 axis water cooling spindle 15KW(HSF63F with ER40 collect) |
| Spindle rotary speed |
0-24000rpm |
| Rotary with diameter |
300mm |
| Control system |
Taiwan PLC Syntec system 60W-E |
| Drive and motor |
Yaskawaservo motor drivers 1800w with Japan Shimp oreducer |
| Transmission mode |
Gear wheel for XY axis HIWIN35 square rail, ball screw for Z axis HIWIN 35 square rail |
| Working voltage |
AC380V/60HZ&50hz |
| Command language |
G-code,*u00,*mmg,*plt |
| Software |
Powermill with postprocesser |
► Application Industry of 4 Axis CNC Cutting Machine
1. Kitchen & Bathroom Countertop Fabrication Processing quartz, marble, granite kitchen countertops, vanity tops, kitchen islands, sink cutouts, custom stone shapes for whole-house stone customization.
2. Architectural & Interior Decoration Stone flooring, stair treads, window sills, exterior wall cladding, decorative stone panels and sintered stone for villas, hotels, shopping malls and office buildings.
3. Municipal Engineering Road curbs, paving stones, landscape stone and cement precast products.
4. Monument & Tombstone Industry Cutting granite headstones, memorial stones and cemetery stone components.
5. Stone Slab Processing Factories Slab cutting, block slicing, mass production of standard tiles, artificial stone.
6. Stone Art & Sculpture Rough cutting for stone crafts, relief and artistic stone decorations.
► Applicable Materials
The 4 axis stone cnc cutting machine is mainly used for special-shaped edge or multi-functional cutting of building materials such as rock slabs, marble, artificial stone, granite, cement products, etc.
It is the most suitable deep processing equipment for special-shaped factories such as home decoration or municipal engineering.
► Safety Measures
1. Mechanical safety standards, in line with national safety standards and national health regulations.
2. The equipment has good and comprehensive safety protection measures.
3. Movable parts that are frequently adjusted and maintained.
4. Electrical safety standards, the control system can ensure that there will be no danger when the equipment is powered off, and the equipment itself and personnel will not be harmed.
5. The electrical control system of the equipment has overload protection and short circuit protection functions
6. Safety light grating two pieces at front of machine make sure machine working status safe
7. Spindle to table surface have 435mm safety distance
► Rhino 4 Axis CNC Stone Cutter Detailed Components

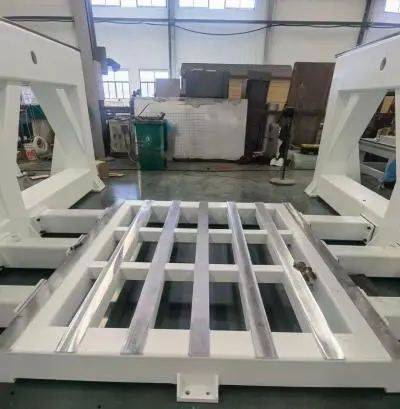

1. This machine is made of heavy materials, with a solid bed, which is durable and does not deform.
The whole machine is processed by cnc milling machine to process the guide rail surface and drill holes.

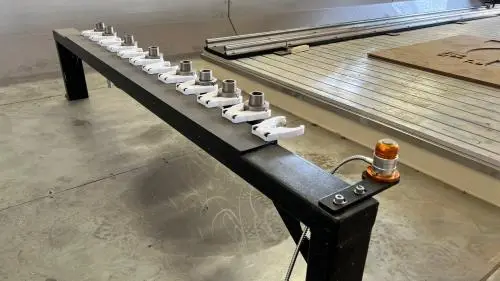

2. Automatic tool changer 12 pieces can fit all kinds of tools cutters driller and saw etc for stone working

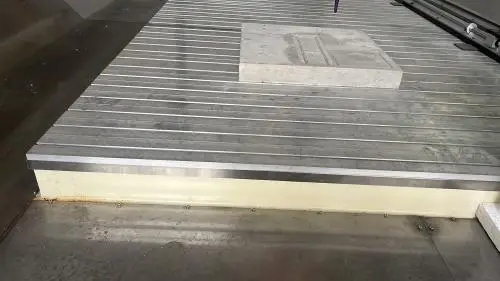

3. Strong welded T-SLOT working table
4. Italy Hiteco 15kw water cooling spindle with HSK63F tool holer ER32/ER40

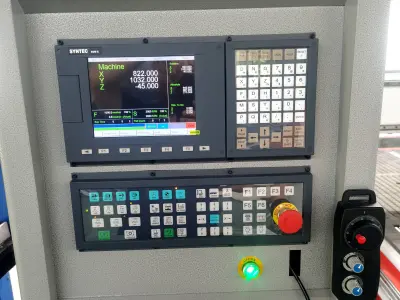

5. Syntec 60WE
four -axis control system with movable handle, flexible point positioning, easy to learn and use, while ensuring equipment accuracy, high cost performance

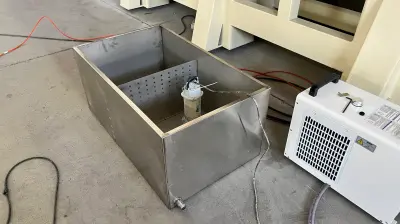

6. Big enough water tank to put water pump inside supply water for cutters and saw in stone cutting and engraving

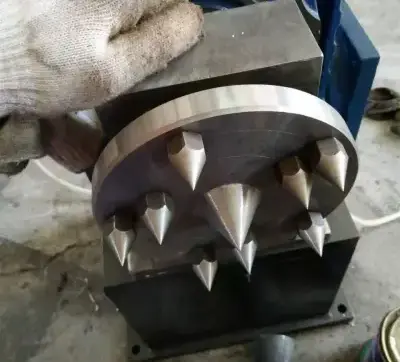

7. Rotary on table as the forth axis can work on stone column and also other software materials as foam etc.

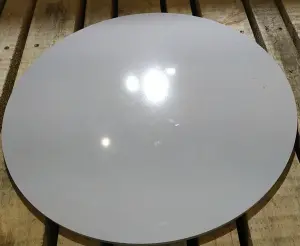

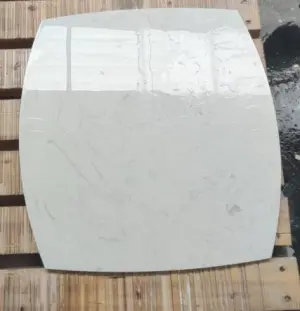

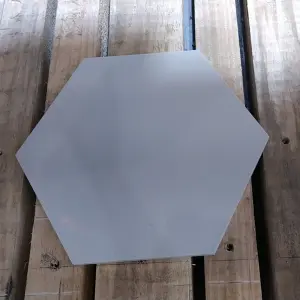

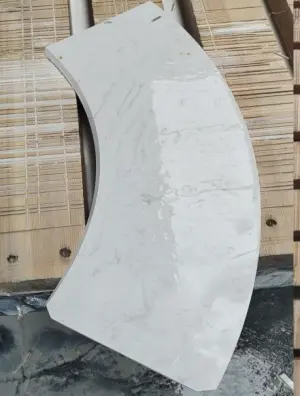

► Cutting Samples
► FAQ
1. Q：Does this 4 axis stone cutting machine have CE certificate? Can it pass EU customs inspection?
A：Yes, it comes with CE certification, meets EU mechanical and electrical safety standards. We can provide full set of documents for customs clearance.
2. Q：What materials can this 4-axis stone CNC machine cut & engrave?
A：It processes rock slabs, marble, artificial stone, granite, cement products. Suitable for kitchen countertops, vanity tops, sink cutouts, tombstone and decorative stone.
3. Q：What control system is installed on the machine? Is the software English version?
A：Adopts Advanced Syntec 4-axis system with intelligent algorithms for tool path optimization. The control panel supports English and multi-language interface.
4. Q：What is the positioning accuracy? What is the max cutting thickness?
A：High positioning accuracy ±0.1mm. Max cutting thickness depends on diamond blade size. Working table size and cutting thickness can be customized.
5. Q：What safety protection devices does the machine have?
A：It meets international mechanical & electrical safety standards. Built-in overload & short-circuit protection, safety light curtain. The machine will stop immediately once the light curtain is blocked.
6. Q：What is the difference between 4-axis and 3-axis stone cnc cutter?
A：4-axis allows rotary movement. It can complete stone column, special-shaped cutting and engraving, while 3-axis only does straight cuts. Better for countertop & tombstone custom factory.
7. Q：What about cable and drag chain quality? Any signal interference problem?
A：New drag chain with internal dividers, separate routing for signal & power lines to reduce interference. Imported high-flexibility shielded cables for longer service life.
8. Q：What’s your machine warranty? How about spare parts supply?
A：12 months warranty for whole machine (excluding wearing parts). We supply spare parts at cost price. Fast delivery via international courier for urgent parts. 24h online remote technical support.
9. Q：How long is production lead time? What shipping terms do you accept?
A：Standard machine: 15–25 working days. We support EXW, FOB, CIF, DAP. Machine packed in strong wooden case for sea freight.
10. Q：Do you provide installation, training and operation guidance?
A：We provide English operation manual and full video tutorials. Remote online training is free. Overseas engineer on-site training available upon request.
11. Q：What power voltage does the machine use? Can it match our local voltage?
A：Standard 380V 3-phase. We can customize voltage to 220V / 415V / 480V according to customer local requirement.
► After Sale Service
1. 12 months-quality guaranty,the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
