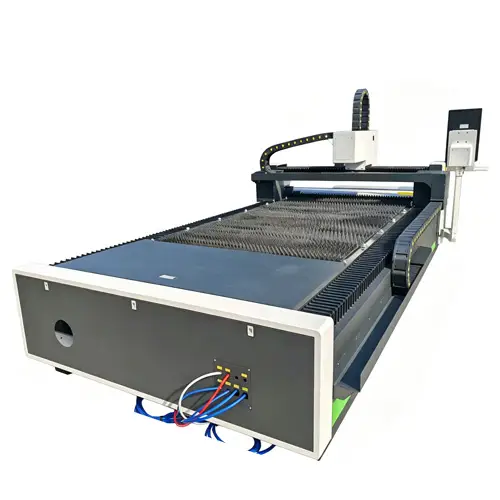

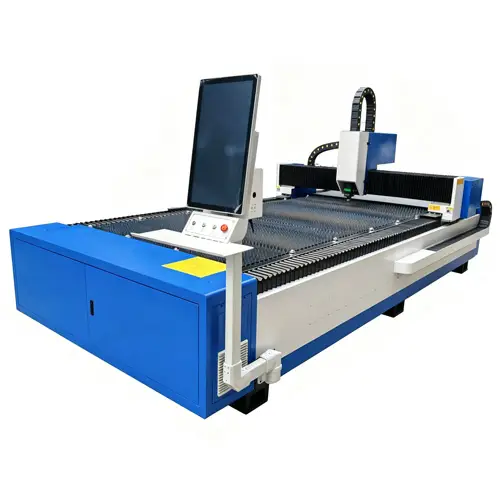

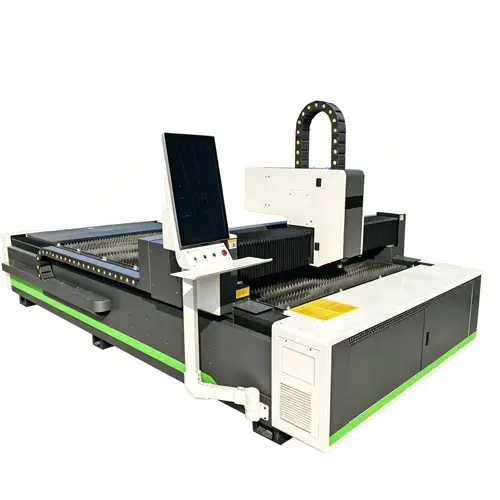

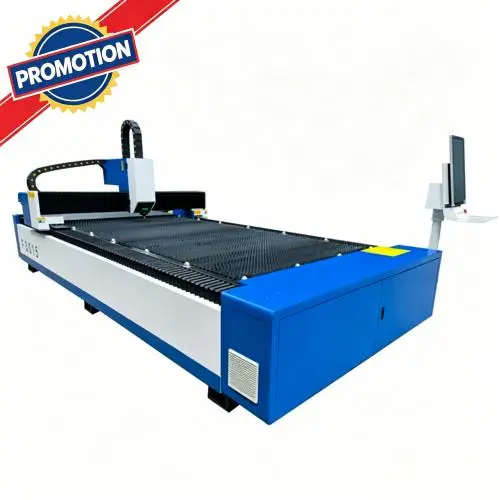

Rhino Cheap Laser Metal Cutting Machine 5x10ft with 1500w/2000w/3000w

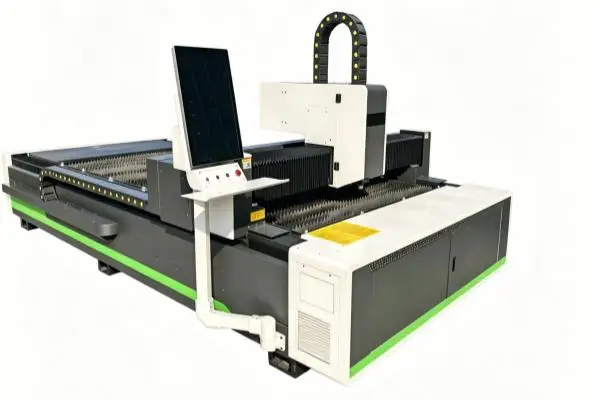

Our cheap laser metal cutting machine RF1530 is a cost-effective 3kw fiber cutter fitted with original Raytools 03KCAT cutting head, equipped with Raycus laser source,
designed for sign business and small metal fabrication factories with limited budget.
Main Characteristics of 3KW Fiber Laser Cutting Machine RF-1530-3000
1. 1500W/2000W/3000W/4000W/6000W Superb quality of laser beam,constant BP within all the ranges of laser powers,so that long focus can still get pretty small laser spot.
2. Special wavelength(1070nm), having special capability of cutting highly-reflective materials,such as aluminium, cooper and brass,etc.
3. Electro-optical conversion efficiency of laser supply>25%, much more efficient than CO2(＜10%), so that consumption of electricity has been depleted very much.
4. Laser is transmitted by fiber cables, almost no consumption during transmission.
5. Modular design, “using immediately after plugging in”, mini size,easy to be installed, no maintenance of laser supply and transmission system of laser beam.
6. Life span of pumping source ＞100,000 hours
7. 0.01mm high precise quality of laser beam with pretty small divergence angle.
8. Incomparable life span
9. The life span of RAYCUS fiber laser supply is at least more than 100,000 hours.
10. Lower electrical consumption, free of maintenance 2 years
11. Fiber laser supply has excellent thermal properties,high efficiency, water-saving, electricity-saving, the most important point is that fiber laser supply can be used for a long time without maintenance. In that way, a lot of maintenance cost and time will be saved and working efficiency will be much improved.
12. Machine working size 1500mmx3000mm heavy frame and net weight 2000kg about
13. Different table size can be customized as 1300mmx2500mm/1500mmx400mm/1500mmx600mm etc
Suitable Materials and Industry Application
1.Sheet metal laser cutting RF-1530-3000 widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and other fields.
2.Professional used to cut thin sheet metal, in a variety of high quality 0.5-10 mm carbon steel sheet cutting, also cut stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.
Machine Main Components

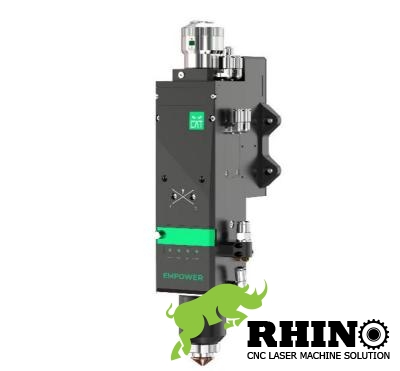

R-1530-3KW Laser cutting head
Raytools 03KCAT laser head work with laser power 1kw-4kw, professional for thin stainless steel ,mild steel,aluminum cutting
1. Industrial fiber cutting equipment laser head,which has Z axis follow-up function. Highly sensitive and follow-up cutting head applies capacitance sensor monitoring, offering automatic adjusting function with stable and fast cutting.
2. All kinds of matching design of nozzle are applied to lens with many focuses and can also be equipped with optical lens with different focuses.
3. The focus and nozzle can be adjustable flexibly, including adjusting lens on X-Y direction and nozzles on the same axis.
Control Box
The control box of fiber laser cutting machine RF-1530-1000 is configured separately to reduce interference and easy to maintain.
To ensure the stability and avoid signal interference，we use the following measures based on electrical technology
1. The main circuit and control circuit are connected by wires separately bypass.
2. The wire of main controller use shielded or twisted wire.
3. The connection of motor and driver use separate outlet to avoid parallel with other wires.
4. I/O interface chip、controller、sensor and the connector are as close as possible.5. The connect wire between upper and lower equipment use the Aerial plug connector and Weidmuller terminal block.
Safety Protection System
1. Laser module protection
2. The laser module have warning sign to introduce the laser out avoid harm from direct laser；
3. The cover have ground connection to avoid hurt from leakage.
4. The operator need to wear suitable laser protection glasses throughout the operation；
5. Make sure the protection equipment have no wear and tear before operating；
6. Do NOT look the laser out head at any time when the device is powered；
External Transmission fiber Protect section
1. The workstation of RF1530 5x10ft metal laser cutter for sign industry use imported high quality guide pulley and Limit device to fix and guide laser cable；
2. The transmission fiber have protective cover made of special laser protection material to prevent the laser leak；
3. The protective cover of transmission fiber have leak sensor,if the fiber fractured to cause the laser leak,the sensor will transmit the signal to control center immediately,then the control center will stop the laser equipment and alarm.
RF-1530-3000 Main Parameters:
| Model |
R--1530-3000 |
| Laser type |
Fiber laser |
| Laser working medium |
Fiber |
| Laser wavelength |
1070 nm |
| Rated output power |
3000w MAX/RAYCUS brand |
| Beam quality |
＜0.373mrad |
| Effective cutting range |
3000×1500(mm) |
| Table axial positioning accuracy |
≤±0.03mm/m |
| Repeat positioning accuracy table |
≤±0.02mm/m |
| Cutting speed |
≤30m/min |
| Maximum table load |
2000KG |
| Power Ratings |
Three-phase AC 380V 50Hz |
| Equipment electric power |
10-20KW |
| Total power protection class |
IP54 |
RF-1530-3000W Main Components Details:
| No. |
Item |
Brand |
Country of origin |
| 1 |
Fiber laser generator 3000W |
Raycus |
China |
| 2 |
Lubrication system |
Automatic |
China |
| 3 |
Laser head |
Ray Tools |
China(famous in laser cutting head) |
| 4 |
Reducer |
Shimpo
|
Japan |
| 5 |
Water chiller |
CWFL800 |
Wuhan,China |
| 6 |
Mechanical driving system |
High accurate bevel rack&pinion,PMI square rail |
TAIWAN |
| 7 |
High precision auto following |
Raytools |
Shanghai,China |
| 8 |
PC system |
Industrial computer |
TAIWAN |
| 9 |
X axis servo unit |
Leadshine 850w |
China |
| 10 |
Y axis servo unit |
Leadshine 850w |
China |
| 11 |
Z axis servo unit |
Leadshine 400w |
China |
| 12 |
Reducer motor |
Shimpo |
Japan |
| 13 |
Cutting software |
Raytools XC3000S |
Shanghai,China |
| 14 |
I/O card |
Raytools |
Shanghai,China |
| 15 |
Working table |
Knife table with strictly hardening,tempering and annealing treatment,frame thickness 10mm |
Jinan,China |
| 16 |
Button module |
Schneider |
China |
| 17 |
AC Contactor |
Schneider |
China |
Different Material Cutting Thickness List
Zincoat Sheet / SS
| Thickness(mm) |
speed(m/min) |
Pressure(Mpa) |
Gas |
Height(mm) |
| 0.5 |
17-18 |
1 |
N2 |
0.6 |
| 1 |
15-17 |
1.1 |
N2 |
0.6 |
| 2 |
4-4.5 |
1.5 |
N2 |
0.6 |
| 3 |
1.5-1.7 |
0.4 |
N2 |
0.6 |
| 4 |
0.8-0.9 |
0.15 |
N2 |
0.6 |
| |
|
|
|
|
Carbon Steel
| Thickness(mm) |
speed(m/min) |
Pressure(Mpa) |
Gas |
Height(mm) |
| 1 |
10-12 |
1 |
O2 |
1 |
| 2 |
5-6 |
0.5-0.8 |
O2 |
1 |
| 3 |
2-2.5 |
0.25-0.4 |
O2 |
1 |
| 4 |
1-2 |
0.15-0.2 |
O2 |
1 |
| 5 |
1-1.2 |
0.15-0.2 |
O2 |
1 |
| 6 |
1-0.8 |
0.1-0.15 |
O2 |
1 |
| 8 |
0.8-0.9 |
0.1-0.15 |
O2 |
1 |
| 10 |
0.6-0.65 |
0.1-0.15 |
O2 |
1 |
| |
|
|
|
|
Aluminum
| Thickness(mm) |
speed(mm/s) |
Pressure(Mpa) |
Gas |
Height(mm) |
| 1.5 |
120-130 |
1.1 |
N2/Air |
0.8 |
| 2.5 |
60-70 |
1.1 |
N2/Air |
0.8 |
| 3 |
30 |
1.1 |
N2/Air |
0.8 |
| 4 |
10 |
1.1 |
N2/Air |
0.8 |
Rhino Fiber Cutting Machine Detail Parts Show
1. TAIWAN YYC helical rack and TAIWAN PMI square rail for transmission
2. Strong machine table that can hold thickness 12mm steel perfectly very stable
3. China leadshine 850w/1300w servo motor drivers with shimpo reducer
4. Raytool laser head 03KCAT with fast cutting speed and high precision
5. Seperate control box with panel 6. Automatic oil box
7. Water chiller CWLF-800 S&a brand top in China 8. Remot handle with system more convenient to operate this machine
Machine Cutting Samples from 1mm-8mm
Machine Package and Delivery
Since this model RF-1530-3000 package width 2.3meter we only can put it on the wooden pallet but we will tight it perfectly and fix it well inside of container so no need any worry about the transportation no matter by sea or by train.
FAQ About Cheap Laser Metal Cutting Machine RF-1530
Q1: Is this cheap laser metal cutting machine equipped with original Raytools 03KCAT head?
A: Yes, our cheap laser metal cutting machine is fully fitted with genuine Raytools BS03K-CAT (03KCAT) EtherCAT laser cutting head. The original 03KCAT head supports automatic height following, stable cutting for thin stainless steel, carbon steel and aluminum, perfectly matching 1000W~4000W Raycus laser source.
Q2: What metal thickness can this budget RF1530 laser cutter cut?
A: This budget RF1530 laser cutter can cut carbon steel up to 10mm, stainless steel up to 6mm and aluminum up to 4mm under 3000W configuration. Cutting parameters are adjustable to fit different raw materials for small metal processing.
Q3: Why choose Rhino’s low price fiber laser cutting machine for small workshop?
A: Rhino’s low price fiber laser metal cutting machine features original Raytools 03KCAT cutting head, famous brand core spare parts and solid heavy-duty machine frame at competitive cost. It saves power consumption and later maintenance cost, ideal equipment choice for budget-limited small metal fabrication workshops.
Q4,What is warranty and service you have?
A:Machine warranty 2 years for free and long life time serice and we have professional engineers who are responsible for service. We offer online/telephone/email service 7x24 hours.
We have online talking group in WhatsApp and Wechat with engineers and customers
Q5,How can I confirm machine specifications?
A:Firstly we need to know the working size you need and what is materials you want to cut also if you have your own requirements let me know at anytime please
Q6,What is software of machine you use?
A:We use Cypuc standard version that professional for thick metal cutting solution perfectly
Q7,Do you offer training for the softwares?
A:Yes, we have engineer who work this two softwares so you can come our factory or we send them to your company to give you training
Q8,Could you customized this fiber laser cutting machine as per our detail requirement?
A:Yes, you give us all your detail requests and we make agreement then start machine productime
